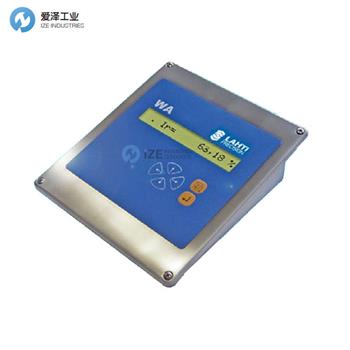

LAHTI PRECISION稱重指示器WA-810系列技術參數
Display | LCD with backlight, 1 row 20 characters, character height 12mm |
Keyboard | 6 keys |
Supply voltage | 85-250 VAC, 47-63 Hz, max. 10 VA |
Temperature range | Operating temperature: -30 to +60 °C, storage: -40 to +80 °C |
Measuring channels | 1 |
Load cell supply | 5 VAC |
Input signal | -20 mV...+20 mV |
Measuring units | kg/h, t/h, lb/h |
Load cell impedance | Min 43 Ω (8 x 350 Ω load cell) Max. 4500 Ω |
Date/time | Real time clock (RTC), Back-up time at least 7 days |
Housing | Stainless steel 1.4301; |
Digital inputs | WA-802 inputs + 1 x NAMUR, max. 5 VDC, 0.04-3000Hz |
Digital outputs | WA-802 outputs + 1 x optocoupler, 18 - 36 VDC, max. 50 mA |
Analog output | 1 x 0(4) – 20 mA, 12 Bit, max. load 500 Ω |
Ethernet interface | 10/100 Mbit/s, integrated |
Standard fieldbus interfaces | Modbus RTU, Modbus TCP |
Optional fieldbus interfaces | Profibus DP-V0, DeviceNet, Ethernet/IP |
Serial interfaces | 1 x RS-485 2/4 wire |
LAHTI PRECISION稱重指示器WA-800系列介紹
WA-800 是一款適用于各種應用的完整稱重指示器。
WA-800 產品系列提供兩種外殼選擇，包括臺式設備和壁掛式設備，兩者均采用不銹鋼設計。這些設備的防護等級為 IP65。
WA-802r 的防護等級為 IP20。其外殼材料也是不銹鋼。WA-802r 安裝在 DIN 導軌上。
The WA-800 is a complete weighing indicator for a variety of applications.
The WA-800 Product Family offers two housing options, which include a tabletop device and a wall-mounted device both in stainless steel design. The protection class of these devices are IP65.
Protection class of the WA-802r is IP20. It’s housing material is also stainless steel. WA-802r is installed to DIN-rail.
LAHTI PRECISION稱重指示器WA-800系列其他常用型號：
LAHTI PRECISION WA-801
LAHTI PRECISION WA-802
LAHTI PRECISION WA-802r
LAHTI PRECISION WA-810
LAHTI PRECISION WA-804
LAHTI PRECISION WA-805
LAHTI PRECISION WA-806
LAHTI PRECISION WA-807
LAHTI PRECISION WEIGHING INDICATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LAHTI PRECISION稱重指示器WA-810的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LAHTI PRECISION products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
LAHTI PRECISION稱重指示器WA-800系列WA-810技術參數及介紹
