PLATON流量計PG & PGU系列產品參數
Flow Range | Air Flow 10-100 L/m |
Connection | 1/2”BSP |
PG-Open Frame | |
Brass | PGB1 |
S/Steel | PGS1 |
PGU-Safety Housed | |
Brass | PGUB1 |
S/Steel | PGUS1 |
PLATON流量計PG & PGU系列產品介紹

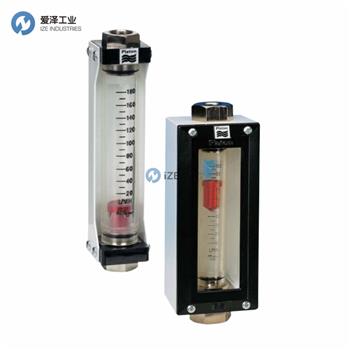

GAPMETER TYPES PG & PGU
Gapmeters type PG and PGU are low cost direct reading variable area flowmeters for liquids or gases, in pipe sizes 1/2” or 1”. The shatterproof TPX moulded tapered indicator tube has a 100mm linear flow scale with a 10:1 flow range. The stainless steel or Dural float rises with the flow to an equilibrium position - flow rate is read from the top of the float. Standard air and water scales are etched directly onto the plastic flow tube high float visibility, easily read at a distance.
Type PG is a lightweight, open construction ideal for surface mounting or portable use. For alternative process liquids or conditions, external laminated scales are provided positioned in front of the flow tube. Type PGU has a rigid diecast housing with a Perspex window, giving complete protection from random damage: this flowmeter is suitable for unsupported mounting in process pipework. TPX plastic tubes are available with air or water scales etched into the flow tube. Glass tubes are also available, which can be supplied with custom scales to suit process conditions, in the PGU housing.
The PG/PGU meters are installed vertically, with flow upward. End connections are either 1/2” or 1” BSPP standard: units with plated brass connections use Nitrile O-ring seals, with stainless steel connections the seals are Viton. Type PGU is also available with stainless steel flange connections, using Viton seals for the flow tube.
TPX plastic has excellent resistance to most chemicals and gases - it is also non-toxic and boilable.
FEATURES
Large flow capacity for use on 1/2” and 1” lines
High visibility
Instantaneous in operation
Suitable for use on a wide range of liquids and gases
Glass tube or special scale options
Low pressure drop
GAPMETER 類型 PG & PGU
PG 和 PGU 型間隙計是用于液體或氣體的低成本直讀可變面積流量計，管道尺寸為 1/2” 或 1”。防碎 TPX 模制錐形指示管具有 100mm 線性流量刻度，流量范圍為 10:1。不銹鋼或 Dural 浮子隨著流量上升到平衡位置 - 從浮子頂部讀取流量。標準的空氣和水標尺直接蝕刻在塑料流量管上，浮球可見度高，遠距離即可輕松讀取。
PG 型是一種輕型、開放式結構，非常適合表面安裝或便攜式使用。對于替代的工藝液體或條件，在流量管前面提供了外部層壓秤。 PGU 型有一個剛性壓鑄外殼，帶有一個有機玻璃窗口，完全防止隨機損壞：該流量計適用于工藝管道中的無支撐安裝。 TPX 塑料管可提供蝕刻到流量管中的空氣或水垢。 PGU 外殼中還提供玻璃管，可提供定制刻度以適應工藝條件。
PG/PGU 儀表垂直安裝，向上流動。端接為 1/2” 或 1” BSPP 標準：帶鍍銅連接的裝置使用丁腈 O 形圈密封，不銹鋼連接的密封為 Viton。 PGU 型也可提供不銹鋼法蘭連接，流量管使用氟橡膠密封件。
TPX 塑料對大多數化學品和氣體具有出色的耐受性 - 它也無毒且可煮沸。
特征
大流量，適用于 1/2” 和 1” 管線
較高的知名度
瞬時運行
適用于各種液體和氣體
玻璃管或特殊刻度選項
低壓降
PLATON流量計其他常見型號：
PLATON PGUS1
PLATON PGUB1
PLATON PGS1
PLATON PGB1
PLATON GREASE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PLATON流量計PGUB1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PLATON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
