KLAY液位變送器Hydrobar系列技術參數
Technical details | |
Measuring range min. max. | 0,1…15 bar, adjustable or fixed range |
Process temperature | -10 °C…+70 °C Sensor body and cable |
Accuracy | 0,2 % of adjusted span |
Process connections | Cable hanger, mounting bracket, threaded and flanged connections |
Turn down | 4:1 |
Output | 4-20 mA, 2-wire |
Adjustment | Zero and span adjustable internally only for adjustable version |
Power supply | 12 - 36 Vdc (Ex: 13 - 26,5 Vdc and 17 - 26,5 Vdc for fixed range) |
Protection | IP68 (Submersible parts) |
Ambient temperature | -30 °C..+70 °C, Electronics housing adjustable version |
Diaphragm material | AISI 316L, option Hastelloy C or Gold plated |
Sensor body | AISI 316L |
Cable material | Polyethylene, option Hytrel or PTFE |
Electronics housing | AISI 304, option AISI 316 |
Certificates/approvals | Explosion safety: ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia |
KLAY液位變送器Hydrobar系列介紹
Hydrobar 是一種帶有電纜或延長管的液位變送器。 應用于水、廢水和污泥的液位測量。
特征
強力沖洗隔膜
完美的長期穩定性
固定或可調范圍
主動溫度補償

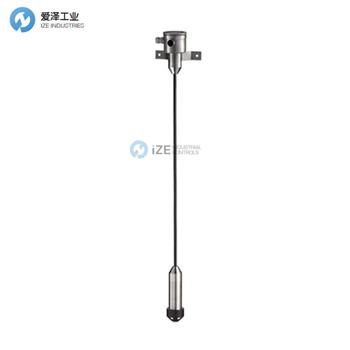

The Hydrobar is a level transmitter with cable or tube extension. Application for level measurement of water, wastewater and sludge.
Features
Strong flush diaphragm
Perfect long term stability
Fixed or adjustable range
Active temperature compensation

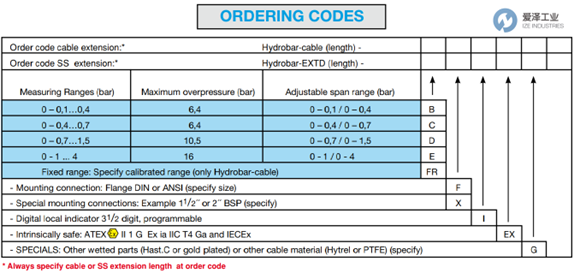

KLAY液位變送器Hydrobar系列選型
KLAY液位變送器Hydrobar系列其他常用型號：
KLAY Hydrobar-Ca(8m)-FR-8mWC-G10-16-104-158
KLAY Hydrobar-Ca(25m)-FR-8mWC-G10-16-104-158
KLAY Hydrobar-Ca(12m)-FR-8mWC-G10-16-104-158
KLAY Level Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KLAY液位變送器Hydrobar-Ca(25m)-FR-8mWC-G10-16-104-158的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KLAY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KLAY液位變送器Hydrobar系列Hydrobar-Ca(25m)-FR-8mWC-G10-16-104-158技術參數及選型
