Level Developments雙軸傾角傳感器LCH-A-D系列技術參數
Parameter | Value |
Supply Voltage | 7-30 V |
Operating Current | 15 mA |
Output Impedance | 100 ? |
Operating Temperature | -40 to 85 °C |
Size: | Width:46.0 mm |
Measuring range | ±10 to ±60 ° |
Zero Output Voltage | 2.5V |
Zero Bias Error | ±0.1 ° |
Zero Bias Temperature Error | 0.02 °/°C |
Sensitivity Temperature Error | 0.01 %/°C |
Accuracy (20°C) | ±0.3 ° |
Accuracy (-10 to 60°C) | ±1 ° |
Long Term Stability | 0.1 ° |
Resolution (@1Hz BW) | 0.05 ° |
Frequency Response | 1 Hz |
Mechanical shock | 3000 (0.5ms) g |
Cable Length | 2 m |
Weight | 24 g |
Level Developments雙軸傾角傳感器LCH-A-D系列介紹
LCH-A-D 是一種低成本的雙軸傾角傳感器，采用密封的機加工鋁外殼。 它有一個用于 X 和 Y 測量軸的模擬接口。 還提供僅 PCB 的版本（部件號 LCP-A-D）。

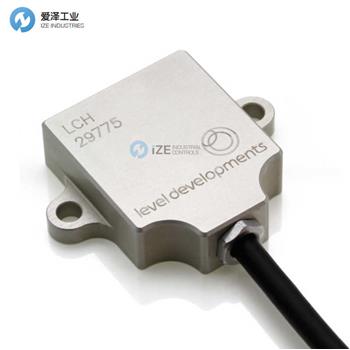

The LCH-A-D is a low cost dual axis inclinometer sensor supplied in a sealed machined Aluminium housing. It has an analogue interface for each of the X and Y measurement axis. A PCB only version is also available (part number LCP-A-D).

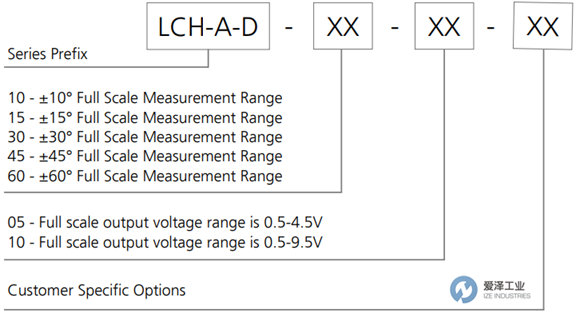

Level Developments雙軸傾角傳感器LCH-A-D系列選型
Level Developments雙軸傾角傳感器LCH-A-D系列其他常用型號：
Level Developments LCH-A-D-10-05
Level Developments LCH-A-D-10-10
Level Developments LCH-A-D-15-05
Level Developments LCH-A-D-15-10
Level Developments LCH-A-D-30-05
Level Developments LCH-A-D-30-10
Level Developments LCH-A-D-45-05
Level Developments LCH-A-D-45-10
Level Developments LCH-A-D-60-05
Level Developments LCH-A-D-60-10
Level Developments Dual Axis Inclinometer Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于Level Developments雙軸傾角傳感器LCH-A-D-15-10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for Level Developments products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
Level Developments雙軸傾角傳感器LCH-A-D系列LCH-A-D-15-10技術參數及選型
