SETRA傳感器266系列技術參數
Specification | ||
Accuracy RSS*(at constant temp.) | ±1.0% FS | |
Non-Linearity (BFSL) | ±0.98% FS | |
Hysteresis | 0.10% FS | |
Non-Repeatability | 0.05% FS | |
Compensated Range °C(°F) | -18 to +65 (0 to +150) | |
Zero/Span Shift %FS/°C(°F) | ±0.06 (±0.033) | |
Maximum Line Pressure | 69 kPa | |
Overpressure (DP on either side) | Range | Overpressure |
<250 Pa | 14 kPa | |
250 up to 625 Pa | 35 kPa | |
>625Pa | 69 kPa | |
Warm-up Shift | ±0.1% FS Tota | |
Temperature | ||
Operating* °C (°F) | -18 to +65 (0 to +150) | |
Storage °C (°F) | -40 to +85 (-40 to +185) | |
Physical Description | ||
Case | Fire Retardent Glass Filled | |
Polyester (UL 94 V-0 Approved) | ||
Pressure Fittings | 6.2 mm | |
Weight | 150 grams (5.3 oz.) | |
Electrical Data (Current) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** | |
9 to 30 VDC/VAC / 0 to 5 VDC** | ||
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
Circuit | 2-Wire | |
Output* | 4 to 20 mA** | |
pressure | 12 mA | |
Electrical Load | 0 to 800 Ohms | |
Electrical Data (Voltage) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** | |
9 to 30 VDC/VAC / 0 to 5 VDC** | ||
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
SETRA傳感器266系列介紹
Setra 266 壓力傳感器可感應差壓或表壓（靜態）壓力并將此壓力差轉換為成比例的電氣輸出。
266 提供高電平 0-10 VDC 和 0 -5 VDC 輸出或 4-20 mA 輸出。
266 系列超低壓傳感器可用于低至 0 至 ±50 Pa 滿量程至 5 kPa 滿量程的氣壓范圍。 在正常環境溫度環境下，靜態精度為 ±1% 滿量程。 在 -18 至 +65 °C（0°F 至 +150°F）的溫度范圍內，這些裝置的溫度補償小于熱誤差的 ±0.06% FS/°C (±0.033% FS/°F)。
Setra 266 pressure transducers sense differential or gauge (static) pressure and converts this pressure difference to a proportional electrical output.
The 266 is offered with a high level 0-10 VDC and 0 -5 VDC output or a 4-20 mA output.
The 266 Series very low pressure transducers are available for air pressure ranges as low as 0 to ±50 Pa full scale up to 5 kPa full scale. Static accuracy is ±1% full scale in normal ambient temperature environments. The units are temperature compensated to less than ±0.06% FS/°C (±0.033% FS/°F) of thermal error over the temperature range of -18 to +65 °C (0°F to +150°F).

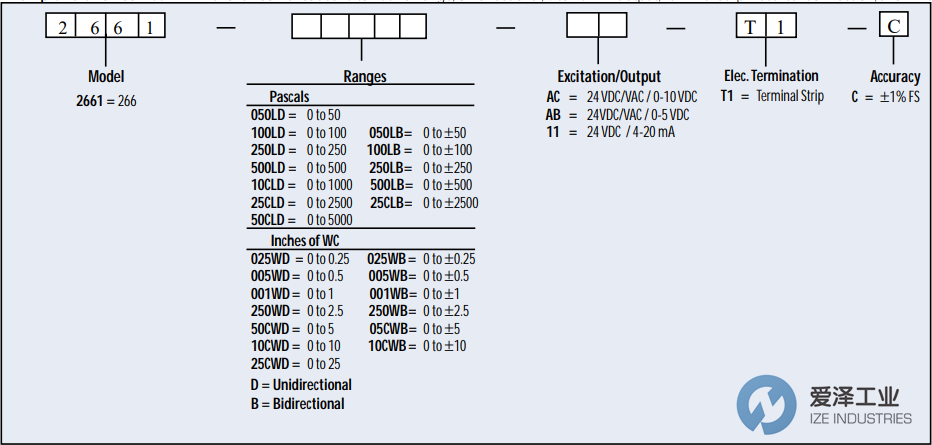

SETRA傳感器266系列選型
SETRA傳感器266系列其他常用型號：
SETRA 2661100LD11T1C
SETRA 2661250LD11T1C
SETRA 2661500LD11T1C
SETRA 266110CLD11T1C
SETRA 266125CLD11T1C
SETRA 2661500CLD11T1C
SETRA 2661050LB11T1C
SETRA 2661100LB11T1C
SETRA 2661250LB11T1C
SETRA 2661500LB11T1C
SETRA 266125CLB11T1C
SETRA 2661-250L-D-AC-T1-C
SETRA Transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA傳感器2661-250L-D-AC-T1-C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SETRA傳感器266系列2661-250L-D-AC-T1-C技術參數及選型
