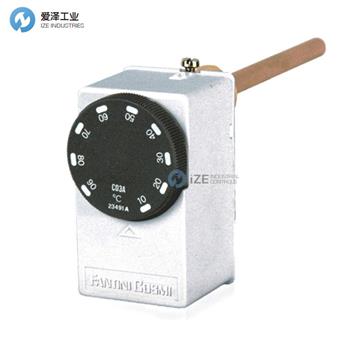

FANTINI COSMI溫控器C03A3產品參數
CODE | C03A3 |
REGULATION TYPE | external |
TEMPERATURE RANGE | 10 ÷ 90 °C |
DIFFERENTIAL | 6 ± 1 k |
MAXIMUM BODY TEMPERATURE | 85 °C |
MAXIMUM BULB TEMPERATURE | 150 °C |
FANTINI COSMI溫控器C03系列產品介紹
General features
Sensing element with stainless steel diaphragm;
Copper bulb and capillary;
Cooper sheath with connection Gc 1/2 PN10;
Base, cover and knob in shock-proof self-extinguishing thermoplastic material V0;
Electric features
Two directions microswitch of instant action with AGcdO contacts;
Contact parameters in compliance with EN 60730-1: 15(6)A 250V~ 50Hz.
Differential 6 ± 1 K (the differential is subtracted from the range value, the differential values refer to a thermal gradient of 6K/hour, 1K/min with heat-conducting paste bags);
Electrical connection output with PVC cable gland;
Storage and transport temperature: -35 ÷ 120°C.
一般特征
帶不銹鋼膜片的傳感元件;
銅燈泡和毛細管;
Cooper 護套,帶連接 Gc 1/2 PN10;
底座、蓋子和旋鈕采用防震自熄熱塑性材料 V0;
電氣特性
帶AGcdO觸點的瞬時動作兩個方向微動開關;
觸點參數符合 EN 60730-1:15(6)A 250V~ 50Hz。
差值6±1K(差值減去量程值,差值是指6K/小時的熱梯度,導熱膠袋1K/min);
帶 PVC 電纜接頭的電氣連接輸出;
儲存和運輸溫度:-35 ÷ 120°C。
FANTINI COSMI溫控器其他常見型號:
FANTINI COSMI Co3A3
FANTINI COSMI Co3B3
FANTINI COSMI Co3C3
FANTINI COSMI Co3A3RI
FANTINI COSMI Co3B3RI
