SETRA壓力開關2411MR2PACP技術參數
Performance specification | |
Measurement range | 40-400Pa (0.16-1.6in.W.C.) |
Accuracy | ≤ ±15% It will be improved for fixed pressure setpoint |
Switching differential | 20Pa |
The max. operating pressure | 10KPa for all pressure ranges |
Burst pressure | 100KPa |
Medium | Air, non-flammable gases or non-corrosive gases |
Life cycle | 1 M |
Installation direction effect | The differential pressure switch should be subject to vertical installation. |
Environmental parameters | |
Medium temperature | -20 ℃ to 85 ℃ |
Storage temperature | -40 ℃ to 85 ℃ |
Ambient condition | Temp. -20 ℃ to 85 ℃ and humidity <90％ RH （without condensation） |
Protection standard | IP 54 |
Certification | ROHS/CE according to EC Low Voltage Directive 73/23/EEC |
Shell Material | Base: PA66; |
Pressure connection | All the installation accessories will be provided in the package. |
Electric connection | 3 terminal screws |
Cable conduit | PG 11 or M20x1.5 cable gland |
Weight | 140g |
Type of Contact | SPDT |
Electrical rating | Max.1.5 A (0.4 A)(250 VAC) |
Reset | Automatic |
Contact resistance | <400mQ |

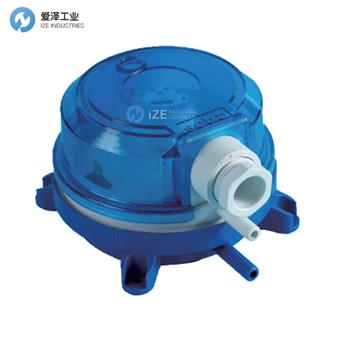

SETRA壓力開關241系列介紹
功能
差壓開關作為壓力操作的電氣開關，具有監測空氣、不燃性和非腐蝕性氣體、測量差壓、表壓和真空負壓等功能。
Function
As an electric switch for pressure operations, the differential pressure switch has functions for monitoring air, non-combustible and noncorrosive gases, measuring differential pressure, gauge pressure and vacuum negative pressure, etc.

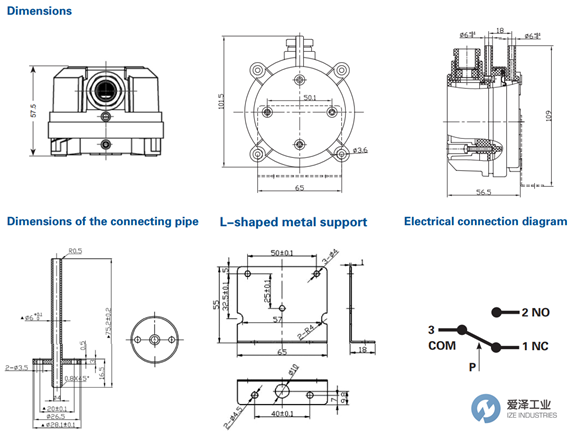

SETRA壓力開關241系列技術尺寸

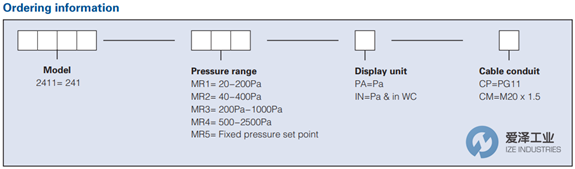

SETRA壓力開關241系列選型
SETRA壓力開關241系列其他常用型號：
SETRA 2411MR1PACP
SETRA 2411MR2PACP
SETRA 2411MR3PACP
SETRA 2411MR4PACP
SETRA 2411MR5PACP
SETRA 2411MR1PACM
SETRA 2411MR2PACM
SETRA 2411MR3PACM
SETRA 2411MR4PACM
SETRA 2411MR5PACM
SETRA Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA壓力開關2411MR2PACP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
