CONTRINEX傳感器DW-Ax系列技術參數
Technical data: (according to IEC 60947-5-2) | |
Rated operating distance sn | 2,0 mm |
Hysteresis | ≤ 10% sr |
Standard target | 8 x 8 x 1 mm |
Repeat accuracy | 0,1 mm* |
Supply voltage range UB | 10 ... 30 VDC |
Max. ripple content | ≤ 20% UB |
Output current | ≤ 200 mA |
Output voltage drop | ≤ 2,0 V at 200 mA |
No-load supply current | ≤ 10 mA |
Leakage current | ≤ 0,1 mA |
Switching frequency | ≤ 5'000 Hz |
Oscillator frequency | 610 kHz |
Time delay before availability | 32 msec |
LED (0 ≤ s ≤ 0.8 sr) | on |
LED (0.8 sr < s ≤ sr) | blinking |
IO-Link (PNP, N.O. version only) | built-in |
Ambient temperature range TA | -25 ... + 70°C1 |
Temperature drift of sr | ≤ 10% max. |
Short-circuit protection | built-in |
Voltage reversal protection | built-in |
Induction protection | built-in |
Shocks and vibration | IEC 60947-5-2 / 7.4 |
Cable length | 300 m max. |
Degree of protection | IP 67 |

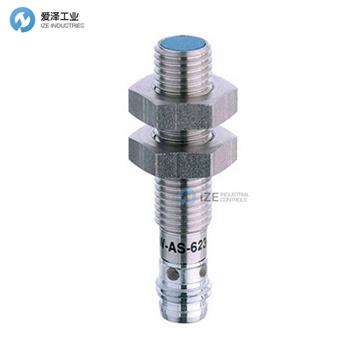

CONTRINEX傳感器DW-Ax系列介紹
工作距離增加的短型設備，圓柱形 M8 外殼
主要特點：
? 增加操作距離：2 毫米
? 外殼長度 16/22/30 mm（電纜）/29/32/40 mm（連接器），圓柱形 M8，不銹鋼 V2A
? 電源電壓 10 ... 30 VDC，輸出電流 200 mA
? LED，內置短路保護、感應過壓保護和電源反接保護
? PNP 和 NPN，N.O. 和N.C. 執行
Short devices with increased operating distance, cylindrical M8 housing
Main features:
? Increased operating distance: 2 mm
? Housing length 16/22/30 mm (cable) / 29/32/40 mm (connector), cylindrical M8, stainless steel V2A
? Supply voltage 10 ... 30 VDC, output current 200 mA
? LED, protections against short-circuits, induced overvoltages and power supply reversal built-in
? PNP and NPN, N.O. and N.C. executions
CONTRINEX傳感器DW-Ax系列其他常用型號：
CONTRINEX DW-AS-621-M8-129
CONTRINEX DW-AS-622-M8-129
CONTRINEX DW-AS-623-M8-129
CONTRINEX DW-AS-624-M8-129
CONTRINEX DW-AS-621-M8-123
CONTRINEX DW-AS-622-M8-123
CONTRINEX DW-AS-623-M8-123
CONTRINEX DW-AS-624-M8-123
CONTRINEX DW-AS-621-M8-124
CONTRINEX DW-AS-622-M8-124
CONTRINEX DW-AS-623-M8-124
CONTRINEX DW-AS-624-M8-124
