NVENT RAYCHEM控制器TCONTROL-05系列技術參數
Voltage Rating | 110 – 240 V |
Operating Temperature | ?10 to 55 °C |
Height | 48 mm |
Width | 48 mm |
Depth | 78 mm |
NVENT RAYCHEM控制器TCONTROL-05系列產品介紹
nVent RAYCHEM TCONTROL-05 是用于非危險區域的單電路電子溫度控制器系列。大多數情況下，此控制器安裝在面板中。該控制器有多種版本可供選擇，每個都可以與任何 PT100 溫度傳感器或標準熱電偶結合使用。溫度范圍為 -200 至 2400 °C，具體取決于所用溫度傳感器的類型。
特點與優勢
易于安裝、編程和操作：顯示屏指示過程值和設定點，在編程過程中還提供指導以簡化調試、服務計數器記錄并最終報警繼電器操作次數
易于使用的 RAYCHEM TCONTROL-05/CONFIG 軟件可以選擇用于計算機輔助配置
堅固、緊湊且節省空間
可調設定點：-200 °C 至 +2400 °C，取決于溫度傳感器
初始上電后的延時：可用于避免啟動期間的峰值功率需求
永久監控輸入溫度傳感器的故障

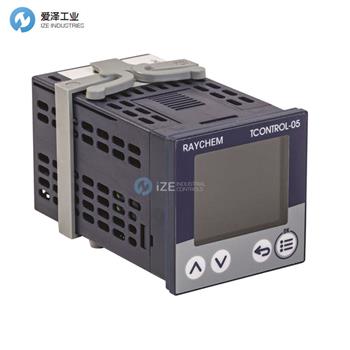

nVent RAYCHEM TCONTROL-05 is a family of single circuit electronic temperature controllers for non-hazardous areas. Most often this controller is installed in panels. Various versions of this controller are available. Each can be used in combination with any PT100 temperature sensor or standard thermocouples. The temperature range is from -200 to 2400 °C, depending on the type of temperature sensor used.
Features & Benefits
Easy to install, program and operate: display indicates the process value and the set point, during programming it also provides guidance to simplify commissioning, service counters record and eventually alarm on the number of relay operations
Easy to use RAYCHEM TCONTROL-05/CONFIG software can optionally be used for computer aided configuration
Robust, compact and space saving
Adjustable set point: -200 °C to +2400 °C, depending on temperature sensor
Time-delay after initial power up: can be used to avoid peak demands on power during start-up
Input temperature sensors are permanently monitored for failures
NVENT RAYCHEM控制器TCONTROL-05系列其他常用型號：
NVENT RAYCHEM TCONTROL-05
NVENT RAYCHEM TCONTROL-05/MA
NVENT RAYCHEM TCONTROL-05/COMA
NVENT RAYCHEM TCONTROL-05/COM
NVENT RAYCHEM Electronic Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NVENT RAYCHEM控制器TCONTROL-05的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NVENT RAYCHEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NVENT RAYCHEM控制器TCONTROL-05系列TCONTROL-05技術參數及介紹
