S+S REGELTECHNIK流量傳感器SW-1E是Sw1EPL的新型號
S+S REGELTECHNIK流量傳感器SW系列技術參數
TECHNICAL DATA | |
Switching capacity: | 15 (8) A; 24…250 V AC,at 24 V AC min. 150 mA |
Contact: | dustproof microswitch as potential-free single-pole changeover contact |
Housing: | plastic, UV-resistant, material polyamide, 30 % glass-globe reinforced, colour traffic white (similar to RAL 9016) |
Housing dimensions: | 108 x 70 x 73.5 mm (Thor 2) |
Base body: | galvanised steel |
Screwed socket: | brass or stainless steel |
Paddle: | stainless steel V4A (1.4401) |
Cable connection: | cable gland, plastic (M 20 x 1.5; with strain relief,exchangeable, inner diameter 8 - 13 mm) |
Housing temperature: | –40...+85 °C |
Max. temperature of medium: | +120 °C |
Electrical connection: | 0.14 - 1.5 mm2, via screw terminals |
Protection class: | I (according to EN 60 730) |
Protection type: | IP 65 (according to EN 60 529) |
Standards: | CE conformity, EMC directive 2014 ? 30 ? EU,low-voltage directive 2014 ? 35 ? EU |
S+S REGELTECHNIK流量傳感器SW系列介紹
機械式 RHEASREG SW 槳式流量監測器，帶開關輸出，采用耐沖擊塑料外殼，帶不銹鋼槳，用于?''和?''到液壓系統管道中的液體和氣體、非腐蝕性介質的流量監測8 英寸直徑。
流量傳感器用作流量控制器或低水位報警器，例如用于油和冷卻回路中的泵、冷卻系統、蒸發器、壓縮機和帶有黃銅或不銹鋼主體的熱交換器。

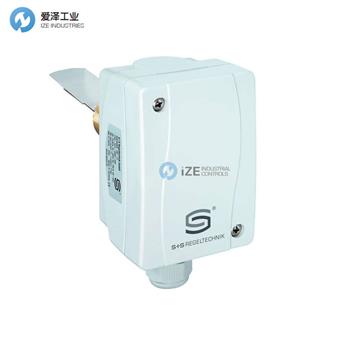

Mechanical RHEASREG SW paddle flow monitor with switching output, in an impact resistant plastic housing, with stainless-steel paddle, for flow monitoring of liquid and gaseous, non-aggressive media in pipes of hydraulic systems from ?'' and ?'' to 8'' diametre.
The flow sensor is used as a flow controller or low water alarm, e.g. for pumps in oil and cooling circuits, cooling systems, evaporators, compressors and heat exchangers with brass or stainless-steel bodies.
S+S REGELTECHNIK流量傳感器SW系列其他常用型號：
S+S REGELTECHNIK SW-1E
S+S REGELTECHNIK SW-2E
S+S REGELTECHNIK SW-3E
S+S REGELTECHNIK SW-4E
S+S REGELTECHNIK Flow monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于S+S REGELTECHNIK流量傳感器SW-1E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for S+S REGELTECHNIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
S+S REGELTECHNIK流量傳感器SW系列SW-1E技術參數
