DIGITRACE溫度傳感器MONI-PT100-4/20MA技術參數
Area of use | Hazardous environment Zone I |
Sensor | Type Pt 100 (3 wire) |
Material | extension cable and tip both stainless steel (MI). |
Temperature measuring range: | –50°C to +250°C (transmitter) |
Maximum exposure temp. tip | +585°C |
Length | 2 m. |
Diameter | ca 3 mm |
Minimum bending radius | extension cable: 20 mm, the measuring tip should not be bent |
Enclosure | |
Ingress protection | IP66 |
Material | Glass fiber reinforced polyester (black) |
Dimensions | Width = 80 mm Heigth = 75 mm Depth = 55 mm |
Cable gland | M20, blue (EEx e) suitable for cable diameters ranging from 10 mm to 14 mm |
Operating temperature | –20°C to +55°C |
Sealing gasket material | tongue and groove system with silicone seal |
Cover screws | Stainless steel M4 threaded |
For pipe mounting use | JB-SB-26 |
Installation and connection: | |
Terminals | 2 screw terminals |
Terminal sizing | suitable for cables from 0.5 mm2 to 1.5 mm2 |
Ordering details | |
Part Description | MONI-PT100-4/20MA |
PN | 704058-000 |
DIGITRACE溫度傳感器MONI-PT100-4/20MA產品介紹

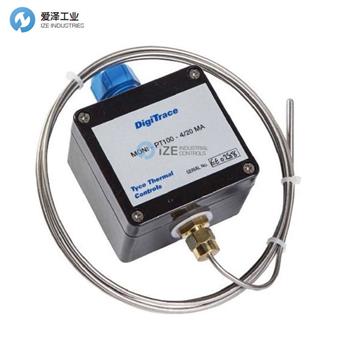

Pt 100傳感器連接到4-20 mA變送器，該變送器內置在帶有M20電纜接頭（藍色）的黑色玻璃纖維增強聚酯接線盒中。
Pt 100 sensor connected to a 4-20 mA transmitter built in a black glass fiber reinforced polyester junction box with M20 cable gland (Blue).
DIGITRACE溫度傳感器PT100系列其他常用型號：
DIGITRACE MONI-PT100-NH
DIGITRACE MONI-PT100-EXE
DIGITRACE MONI-PT100-4/20MA
DIGITRACE MONI-PT100-EXE-SENSOR
DIGITRACE Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
