TESCOM壓力傳感器100系列技術參數
OPERATING PARAMETERS | |
Full Scale Accuracy: | +/- 0.25% |
Ports: | 1/4" NPT (external) |
Connections: | Mini Hirschmann |
Output Signal: | 4-20 mA |
TESCOM壓力傳感器100系列介紹
TESCOM壓力傳感器用于要求高精度和耐久性的重型應用。100系列采用了擴散半導體和濺射薄膜應變計技術。壓力范圍的所有標準值，從-30 inch-Hg到15,000psig/-1.0到1034bar，包括絕對傳感器到300 psia / 20 bar。壓力傳感器還提供了0.5%、0.25%和0.125%的全比例精度。
? 提供非常穩定和可重復的液壓和氣動壓力測量
? 適用于各種工業、實驗室和測試應用
? 對RFI（對講機)、EMC（電機的電氣噪聲）和ESD(應用中產生的靜電）產生的噪聲提供顯著的免疫力

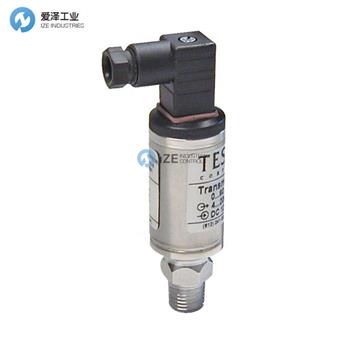

TESCOM Pressure Transducers are used in heavy duty applications requiring high accuracy and durability. The 100 Series utilize diffused semiconductor and sputtered thin film strain gauge technology. Pressure ranges come in all the standard values from -30 inch-Hg to 15,000 psig / -1.0 to 1034 bar including absolute transducers to 300 psia / 20 bar. Pressure Transducers offer full scale accuracies of 0.5%, 0.25%, and 0.125%.
? Provides extremely stable and repeatable hydraulic and pneumatic pressure measurements
? Suitable for a wide variety of industrial, laboratory, and test applications
? Provides significant immunity to noise due to RFI (walkie-talkie), EMC (electrical noise from motors), and ESD (static electricity generated in the application)

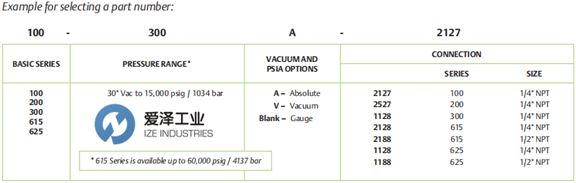

TESCOM壓力傳感器100系列選型
TESCOM壓力傳感器100系列其他常用型號：
TESCOM 100-3000-2127
TESCOM 100-60-2127
TESCOM 100-500-2127
TESCOM 100-1000-2127
TESCOM 100-1500-2127
TESCOM 100-6000-2127
TESCOM Pressure Transducers NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM壓力傳感器100-6000-2127的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM壓力傳感器100系列100-6000-2127技術參數及選型
