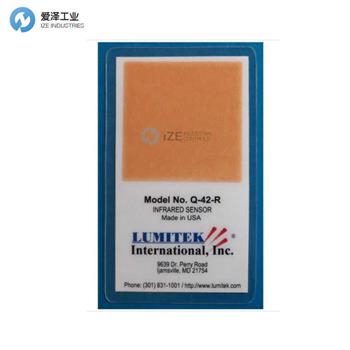

LUMITEK顯示卡Q-42-R產品介紹
LUMITEK IR 傳感器卡的工作原理被稱為“電子捕獲”。
磷基化合物用于吸收和“捕獲”來自較短(環境光)波長的入射光能(電子被驅動到更高的能級),并在來自較長波長的刺激時以可見光的形式釋放儲存的光。紅外波長。這種現象可以稱為上轉換,因為較低頻率的 IR 被轉換為較高頻率的可見光。可見光的結果是局部發光,其強度與存儲的光量和激發活動區域的 IR 功率水平有關。
LUMITEK 的上轉換或下轉換材料允許通過肉眼看到 IR 或 UV 輻射,提供漫射局部可見光,用于檢測和定位 IR 或 UV 源。這些傳感器通過為用戶提供即時可見模式來確定各種源(例如,紅外發射激光器、二極管、遙控器、光纖、紅外聚光燈等)。
LUMITEK IR Sensor Cards work on a principle known as “Electron Trapping”.
Phosphor-based compounds are employed to absorb and “trap” incoming light energy from a shorter (ambient light) wavelength (the electrons are driven a higher energy level), and release that stored light in the form of visible light upon stimulation from a longer IR wavelength. This phenomenon can be called up-conversion, because the lower frequency IR is converted to a higher frequency visible light, The visible result is a localized glow which is relative in intensity to the amount of stored light and IR power levels exciting the active area.
LUMITEK’s up-or down-converting materials allow to see the IR or UV radiation by naked eye providing a diffuse localized visible glow for detection and location of IR or UV sources. These sensors provide a low-cost and effective alternative to laser beam finders and beam profile instruments by providing the user with an instant visible pattern for determining beam location and approximate beam size of various sources (e.g., IR emitting lasers, diodes, remote controls, optical fibers, infrared spotlights, etc.).
LUMITEK顯示卡其他常用型號:
LUMITEK Q-11-R
LUMITEK Q-16-R
LUMITEK Q-32-R
LUMITEK Q-42-R
LUMITEK L-IR-R
LUMITEK U-21-R
LUMITEK Q-32-RW
LUMITEK IR Sensor Cards NEW + ORIGINAL+ ONE YEAR WARRANTY
