LAHTI PRECISION稱重傳感器RC2-33T-F技術參數
Accuracy class | F |
Nominal load | 10 t - 470 t |
Nominal sensitivity | 2,85 mV/V |
Sensitivity tolerance | ±0,3 % |
Combined error | 0,1 % |
Minimum dead load output return | ±0,05 % |
Creep 30 min | ±0,06 % |
Temperature coefficient of zero point /10 K | |
Nominal temperature range | ±0,1 % |
Temperature range | ±0,1 % |
Temperature coefficient of sensitivity /10 K | |
Nominal temperature range | ±0,1 % |
Temperature range | ±0,1 % |
Output resistance | 4010 Ω ± 10 Ω |
Zero signal | ±2 % |
Maximum voltage supply | 100 V |
Nominal temperature range | - 10°C ... + 40°C |
Temperature range | - 40°C ... + 80°C |
Reference temperature | + 22°C |
Storage temperature range | - 50°C ... + 85°C |
Protection class | IP 68 |

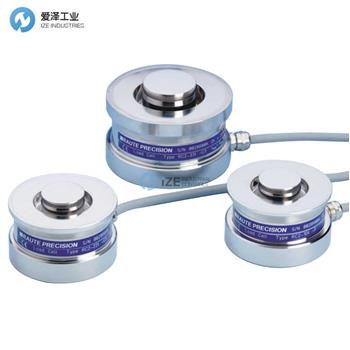

LAHTI PRECISION稱重傳感器RC2系列產品介紹
RC2 系列壓縮稱重傳感器非常適合可驗證的秤和各種過程稱重應用。它可以與料斗秤、車輛秤和筒倉的安裝套件一起使用。
稱重傳感器堅固耐用，專為在苛刻的工業環境中使用而設計。機身由不銹鋼制成，并通過激光焊接密封。
Series RC2 compression load cell is ideally suited for verifiable scales as well as for various process weighing applications. It can be used with mounting kits for hopper scales, vehicle scales and silos.
The load cell is robust and designed for use in demanding industrial environments. The body is made of stainless steel and hermetically sealed by laser welding.
LAHTI PRECISION稱重傳感器RC2系列其他常用型號：
LAHTI PRECISION RC2-33T-F
LAHTI PRECISION RC2-1t-F
LAHTI PRECISION RC2-15t-F
LAHTI PRECISION RC2-22t-F
LAHTI PRECISION RC2-47t-F
LAHTI PRECISION RC2-68t-F
LAHTI PRECISION RC2-100t-F
LAHTI PRECISION RC2-150t-F
LAHTI PRECISION RC2-220t-F
LAHTI PRECISION RC2-330t-F
LAHTI PRECISION Load Cell NEW + ORIGINAL+ ONE YEAR WARRANTY
