GP50傳感器42系列規格描述
ELECTRICAL | |
Output Signal: | (142) 3.0 mV/V (Amplified output) |
Excitation Voltage: | (142) 3.5 to 15 Vdc |
Bridge Resistance: | (142) 4K to 6K Ω Amplified Output |
Circuit Protection: | Reverse polarity, output may be grounded indefinitely |
Response Time: | <3 mSec Typ |
MATERIALS OF CONSTRUCTION | |
Wetted Parts: | 17-4 PH or 316L stainless steel |
Housing: | 316 stainless steel |
O-Ring: | Buna-N (Nitrile) is standard |
ACCURACY (BFSL): Hysteresis, non-Linearity & Repeatability @ + 70 °F | |
Standard: | ±0.2% FSO |
Improved: | ±0.1% FSO |
Zero & Span Balance: | ±0.5% FSO at + 70 °F |
MECHANICAL | |
Process Connection: | AS4395E04 standard, optional ports available |
Electrical Connection: | Bendix PTIH-10-6P connector or equivalent |
Proof Pressure: | 2X FSO |
Burst Pressure: | 5X FSO or 22.5K PSI (1,551 BAR), whichever is less |
Approximate Weight: | 3 oz nominal (85 grams) |
PRESSURE RANGES | |
0 to 500 thru 0 to 15K PSI (1 thru 1,034 BAR) | |
THERMAL SPECIFICATIONS | |
Operating Ambient: | -40 °F to +250 °F (-40 °C to +121 °C) |
Compensated Range: | -40 °F to +250 °F (-40 °C to +121 °C) |
Storage Ambient: | -40 °F to +250 °F (-40 °C to +121 °C) |
Effect on Zero/Span: | ±0.75% FSO/100 °F standard |

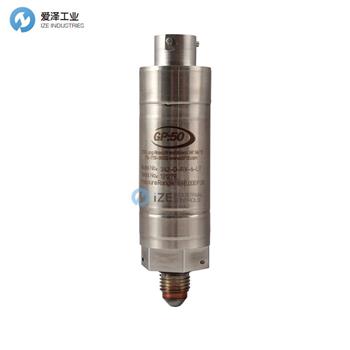

GP50傳感器42系列介紹
PRODUCT OVERVIEW:
Developed from 20+ years of aerospace experience, the 42 Series was designed with aerospace criteria for industrial applications. The compact all-welded construction offers higher accuracies and a broad thermally compensated range. The 42 Series has all the performance and durability of an aerospace grade unit, but with industrial grade pricing.
FEATURES:
? Ranges 0 to 500 thru 0 to 15K PSI
? Broad operating temperature range of -40 °F to +250 °F (-40 °C to +121 °C)
? Accurate up to ±0.1% FSO
? All-welded, hermetically sealed, stainless steel
? Compact size
APPLICATIONS:
? On-board vehicle testing
? Ground support systems
? Military flight testing
? Hydraulic test stands
? Jet engine test stands
OPTIONS:
? Exotic wetted materials
? Optional process and electrical connections
產品概述：
42 系列基于 20 多年的航空航天經驗開發而成，其設計符合工業應用的航空航天標準。 緊湊的全焊接結構提供更高的精度和廣泛的熱補償范圍。 42 系列具有航空級設備的所有性能和耐用性，但具有工業級定價。
特征：
? 范圍從 0 到 500 到 0 到 15K PSI
? -40 °F 至 +250 °F（-40 °C 至 +121 °C）的廣泛工作溫度范圍
? 精度高達 ±0.1% FSO
? 全焊接、密封、不銹鋼
? 緊湊的尺寸
應用：
? 車載測試
? 地面支持系統
? 軍事飛行測試
? 液壓試驗臺
? 噴氣發動機試驗臺
選項：
? 獨特的接液材料
? 可選的過程和電氣連接
GP50傳感器42系列其他常用型號：
GP50 142-B-RV-6-A91
GP50 142-B-RV-6-MN-A91
GP50 342-D-RV-6-LT
