MONITRAN加速度計MTN/1187C系列技術參數
Technical | |
Output current | 4-20mA DC proportional to rms acceleration (g rms) |
Supply voltage | 12-32V DC (4-20mA) |
Frequency response | 2Hz to 1kHz ±10% |
Mounted base resonance | 5kHz (nominal) |
Isolation | Base isolated |
Dynamic range | 50g peak |
Transverse sensitivity | Less than 5% |
Operating temperature | -25 to 90°C |
Temperature sensitivity | 0.08%/°C |
Case material | Stainless stee |
Cable | Integral stainless steel overbraided ETFE |
Standard cable length | 5m |
Maximum cable length | 100m |
Mounting torque | 8Nm |
Weight | 150g (nominal) |
Sealing | IP67 |
MONITRAN加速度計MTN/1187C系列介紹

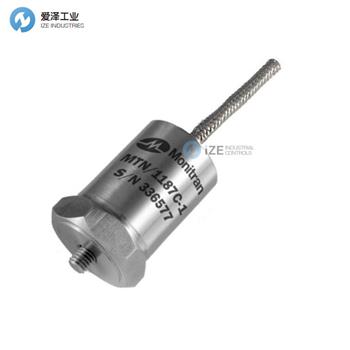

General purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes integral 3-pin 62GB connector and is available with a wide range of mountings.
通用、頂部入口加速度計，直流輸出與加速度成正比。整體由堅固的不銹鋼制成，可在惡劣環境中進行連續振動監測。密封至IP67，具有與傳感器范圍成比例的工業標準兩線4-20mA輸出，可直接連接到PLC、DCS和其他工業控制器。包括一體式3針62GB連接器，并提供多種安裝方式。
MONITRAN加速度計MTN系列其他常用型號：
MONITRAN MTN/1187CM8-7
MONITRAN MTN/1187C-1
MONITRAN MTN/1185, C
MONITRAN MTN/1185I, C
MONITRAN MTN/1185W
MONITRAN MTN/1185IW
MONITRAN MTN/1187, C
MONITRAN MTN/1187W
MONITRAN MTN/1187IC
MONITRAN MTN/1187IW
MONITRAN Air humidity sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MONITRAN加速度計MTN/1187CM8-7的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MONITRAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse oMTN/1187 website: jjxdch.cn.

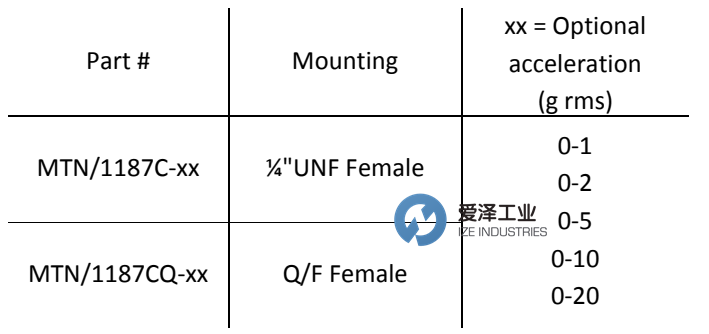

MONITRAN加速度計MTN/1187C系列MTN/1187CM8-7介紹及選型
