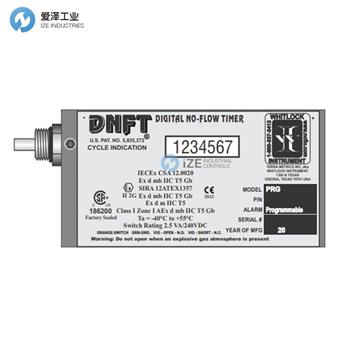

WHITLOCK計時器DNFT-PRG-PS 000519技術參數
Temperature Range | -40℃ to +55℃ |
Switch RaTing | 2.5VA/240 VDC |
Epoxy Encapsulated | UL LISTED EL-CAST VFR 641 |
Power | Field Replaceable - Lithium Battery 3.6 Volt, 1.5 Ah, 75mA MAX Contentious Current |
Alarm/Shutdown | Programmable - 20 sec to 4 min 15 sec alarm |
Battery | P/N 000505 |
Divider Block Application | SBCO/Lubriquip/Lincoln/Dropsa |
WHITLOCK計時器DNFT-PRG-PS產品描述
DNFT-PRG-PS是一款全封閉式電子設備，融合了最新的微處理器和晶體管元件技術，用于檢測分配閥塊潤滑系統的慢流和無流狀態。DNFT內置振蕩晶體，可精確監測潤滑系統的循環時間，從而實現精確定時關機功能。磁鐵組件和控制外殼直接安裝在分配閥上，成為潤滑系統的組成部分。DNFT-PRG采用可現場更換的鋰電池供電。如果電池電壓低于正常工作水平，DNFT將進入報警模式，設備將無法重新啟動。PRG使用LED指示分配閥的每次循環，使操作員能夠輕松設置和監控潤滑速率。PRG配備液晶顯示屏，可顯示總品脫數、分配閥循環時間、分配閥總循環次數以及每日泵送速率（品脫）。PRG可輕松編程，報警時間范圍為20秒至4 分15秒。DNFT的設計和額定用途為在 I 類 I 區環境中使用，可在戶外潮濕或干燥的地方使用，海拔高度低于2000米，污染等級為4。
The DNFT-PRG-PS is a totally enclosed electronic device, combining the latest technology in microprocessor and transistor components for detecting Slow-Flow and No-Flow of divider block lubrication systems. The DNFT incorporates an oscillating crystal to accurately monitor the cycle time of the lubrication system to enable precisely timed shutdown capability. The magnet assembly and control housing mount directly to the divider valve to become an integral part of the lubrication system. The DNFT-PRG operates on field replaceable lithium battery. If battery voltage drops below normal operating levels, the DNFT goes into alarm mode and the unit cannot be restarted. The PRG utilizes a LED to indicate each cycle of the divider valve. This enables the operator to easily set and monitor lubrication rates. The PRG comes with a liquid crystal display to display total pints, cycle time of divider valve, total cycles of divider valve, and pints per day pump rate. The PRG can easily be programmed for an alarm time from 20 seconds to 4minutes 15 seconds. The DNFT has been designed and rated for use in Class I Zone I environments, to be used outdoors in wet or dry locations, in altitudes under 2000 meters, with a Pollution Degree of 4.
WHITLOCK計時器DNFT系列其他常用型號：
WHITLOCK DNFT-PRG-PS 000519
WHITLOCK DNFT-LED 000506
WHITLOCK DNFT-LED 000507
WHITLOCK DNFT-LCC 000353
WHITLOCK DNFT-PRG 000518
WHITLOCK DNFT-PRX 000172
WHITLOCK timer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WHITLOCK計時器DNFT-PRG-PS 000519的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for WHITLOCK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
