THEBEN 紅外運動探測器THELUXA S180 BK 1010506規格描述
Technical data | |
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Stand-by consumption | ~0.9 W |
Light measurement | Mixed light measurement |
Number of channels | 1 |
Colour | Black |
Switching output | Light |
Installation type | Wall installation |
Setting range brightness | 5 – 1000 lx |
Switching capacity | 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3 |
Detection angle | 180° |
Installation height | 2 – 4 m |
Light switch-off delay | 1 s-20 min |
Incandescent/halogen lamp load | 2300 W |
Fluorescent lamp load (conventional) not corrected | 2300 VA |
Fluorescent lamp load (conventional) parallel-corrected | 1200 VA 120 μF |
Fluorescent lamp load (conventional) series-corrected | 2300 VA |
Fluorescent lamp load (electronic ballast) | 1000 W |
Energy saving lamps | 250 W |
Inrush current | max. 300 A / 200 μs |
LED lamp < 2 W | 50 W |
LED lamp 2-8 W | 500 W |
LED lamp > 8 W | 500 W |
Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
Remote controlled | - |
Ambient temperature | -25°C ... 45°C |
Protection class | II |
Type of protection | IP 55 |
THEBEN紅外運動探測器THELUXA系列介紹

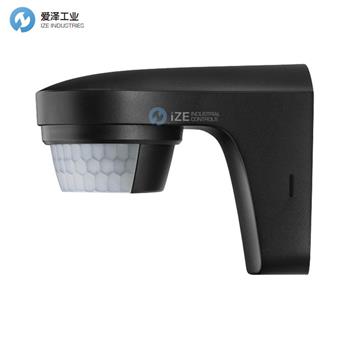

theLuxa S180 BK
Item no.: 1010506
Black
Function description
Passive infra-red motion detector
For outdoor use
Additional creep under protection
Sensor head can be turned by ± 90° horizontally and by 30° downwards
Adjustable brightness switching value and switch-off delay
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
Zero-cross switching for relay-saving switching and high lamp loads
Teach-in of current brightness value possible
Pulse function
Test function for checking detection area
Installation on flush-mounted socket possible (60 mm)
Single-handed plug-in installation
Instant start-up possible via factory preset
Controls are place protected
Terminal for protective earth conductor
theLuxa S180 BK
貨號：1010506
黑色的
功能說明
被動紅外運動探測器
戶外使用
受保護的額外蠕變
傳感器頭可以水平旋轉±90°，向下旋轉30°
可調亮度切換值和關斷延遲
適用于控制熒光燈、白熾燈、鹵素燈和LED的混合光測量
用于繼電器節省開關和高燈負載的過零開關
可示教當前亮度值
脈沖功能
檢查檢測區域的測試功能
可安裝在嵌裝式插座上(60 mm)
單手插件安裝
可通過工廠預設即時啟動
控件受保護
保護接地導體端子
THEBEN紅外運動探測器THELUXA系列其他常用型號：
THEBEN theLuxa S150 WH 1010500
THEBEN theLuxa S150 BK 1010501
THEBEN theLuxa S180 WH 1010505
THEBEN heLuxa S180 BK 1010506
THEBEN theLuxa S360 WH 1010510
THEBEN theLuxa S360 BK 1010511
