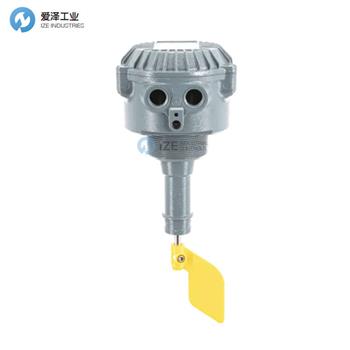

CAMLOGIC液位開關PFG05系列技術參數
Model PFG05 | |
Weight | 1,8 [kg] |
Power supply | - Bivoltage 115/230[V] (50...60Hz) - 4[W] |
Signal | SPDT / max. 10[A]-250VAC |
IP grade | IP65 |
Housing | Aluminium (powder coated) |
Connection | G2" 1/2 - Aluminium |
Ambient temperature | -20 < Ta < +70 [°C] |
Process temperature | -20 < Tp < +70 [°C] |
Pressure range | +0,8 ... +1,1 bar [abs] |
Directives | 2011/65/EU (RoHS) |
ATEX Marking | Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db |
IECEx Marking | Ex ta/tb IIIC T85°C Da/Db |
CAMLOGIC液位開關PFG05系列介紹
旋轉刀片液位開關用于監控液位閾值，通常是滿的或空的。適用于筒倉或垃圾箱中的散裝固體。結構堅固，采用鋁制外殼。適用于重載條件和連續循環的理想傳感器，甚至在因存在灰塵/粉末而可能爆炸的大氣中也是如此。符合最新的 ATEX 標準。
易于安裝：不需要特定的工具或設置。
在存在潛在爆炸性粉塵/粉末的情況下提供最高的安全標準。
探頭可通過多種塑料或不銹鋼刀片適應材料。
根據要求對測量儀器進行機械和電氣定制。
該儀器極其可靠，除了雷達、電容式、超聲波或連續液位探頭外還可用作安全信號。
Rotary blade level switch for monitoring a level threshold, generally full or empty. For bulk solids in silos or bins. Sturdy construction with aluminum casing. The ideal sensor for heavy-duty conditions and continuous cycles, even in atmospheres that are potentially explosive owing to the presence of dusts/powders. Conforms to the most recent ATEX standards.
Easy to install: specific tools or settings are not required.
Provides the highest standard of safety in the presence of potentially explosive dusts/powders.
Probe can be adapted to the material with a broad range of plastic or stainless steel blades.
Mechanical and electrical customizing of the measuring instrument on request.
Extremely reliable, the instrument can be used in addition to radar, capacitive, ultrasound or continuous level probes as a safe signal.
CAMLOGIC液位開關PFG05系列其他常用型號：
CAMLOGIC PFG05/F
CAMLOGIC PFG05ATFV
CAMLOGIC PFG05X
CAMLOGIC PFG05AT
CAMLOGIC PFG05C
CAMLOGIC PFG57
CAMLOGIC PFG05-51
