Tedea-Huntleigh稱重傳感器1242系列技術參數
SPECIFICATIONS | |
Rated capacity—R.C. (Emax) | 50, 100, 150, 200, 250 kg |
Rated output—R.O. | 2.0 mV/V |
Rated output tolerance | 0.2 ±m(xù)V/V |
Zero balance | 0.2 ±m(xù)V/V |
Temperature range, compensated | –10 to +40 °C |
Temperature range, safe | –20 to +70 °C |
Maximum safe central overload | 150 % of R.C. |
Ultimate central overload | 300 % of R.C. |
Excitation, recommended | 10 VDC or VAC RMS |
Excitation, maximum | 15 VDC or VAC RMS |
Input impedance | 415±15 Ω |
Output impedance | 351±5 Ω |
Insulation resistance | >2000 MΩ |
Cable length | 1.5 m |
Cable type | 6-wire, PVC, single loating screen Standard |
Construction | Plated (anodize) aluminum |
Environmental protection | IP66 |
Platform size (max.) | 400 × 400 mm |
Recommended torque | 10.0 Nm |
Tedea-Huntleigh稱重傳感器1242系列介紹
1242型是一種高精度、低輪廓、低成本、雙梁、單點稱重傳感器，非常適合空間有限的工業應用。典型應用包括平臺、吊秤和個人秤。
這種高精度稱重傳感器通過了OIML R60 C6級認證。對于危險環境，該稱重傳感器具有 ATEX認證以及工廠互助協會認證。
特殊的防潮保護涂層可確保在整個補償溫度范圍內的長期穩定性。
兩條額外的感應線反饋到達稱重傳感器的電壓。通過將此電壓饋入適當?shù)碾娮釉O(shè)備，可以完全補償因溫度變化和/或電纜延長而導致的引線電阻變化。

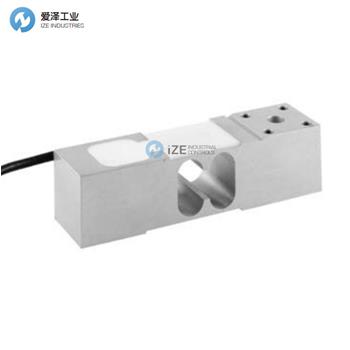

Model 1242 is a high accuracy, low proile, low cost, twobeam, single-point load cell ideally suited for industrial application where space is limited. Typical applications include platforms, hanging scales and personal weighers.
This high accuracy load cell is OIML R60 class C6 approved. For hazardous environments this load cell has ATEX approval, as well as Factory Mutual approval.
A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range.
The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension can be achieved by feeding this voltage into the appropriate electronics.

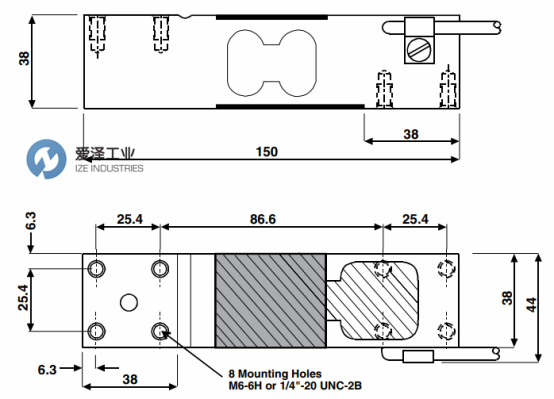

Tedea-Huntleigh稱重傳感器1242系列外觀尺寸
Tedea-Huntleigh稱重傳感器1242系列其他常用型號：
Tedea-Huntleigh 01242-050K-C3-04X
Tedea-Huntleigh 01242-050K-C3-09X
Tedea-Huntleigh Load cell NEW + ORIGINAL+ ONE YEAR WARRANTY
