SETRA溫度傳感器STC系列技術參數
Performance parameters | |
Sensitive element type | Platinum resistance Pt100 |
Nominal value | 100Ω@0℃ |
Accuracy class | |
Sensor (RTD) | Industrial Class A (IEC751) |
Wall Mount Transmitter | ±0.8%FS @23℃ |
Duct type | ±0.5%FS |
Water pipe type transmitter | ±0.5%FS |
long-term drift | The lower limit value and the range change is not more than 0.4% |
temperature effect | |
Medium temperature range | -40°C ~200°C (depending on installation type) |
physical parameters | |
Shell-Wall/Duct Mount Type | ABS polycarbonate |
Shell-Water Pipe Mounting Type | Aluminum alloy |
Housing-sensor protection tube | 304 stainless steel |
Housing - mounting flange. | Carbon steel nickel plated |
mounting thread | G1/2" or 1/2" NPT thread |
Environmental parameters | |
Wall Mount Transmitter | -10°C ~ 70°C |
Air Duct Type, Water Duct Type Transmitter | 0°C ~ 70°C |
RTD output | -40°C ~ 85°C |
storage temperature | -40°C ~ 85°C |
Electrical parameters | |
output | Transducer (RTD) 3-wire |
output | Integrated transmitter 4-20mA (2 wires) |
Insulation resistance≥ | ≥100MR |
Load Resistance | RL=(supply voltage-12)/0.02Q |
Power supply | 12~28VDC (current output) |
Power consumption | 30mA max |

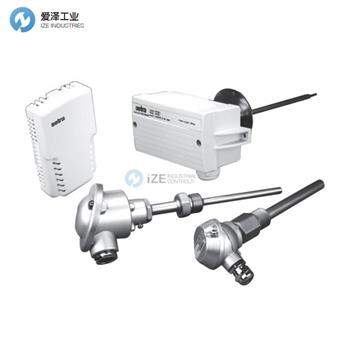

SETRA溫度傳感器STC系列介紹
出眾的性能：采用高質量的工業A級Pt100和Pt1000鉑電阻敏感元件，結合先進的制造工藝，不僅保證產品具有出眾的長期穩定性；同時保證產品具有很高的測量精度；
使用和維護成本低：提供多種安裝方式，便于在各種場合安裝，并提供相應的安裝附件，縮短安裝時間，降低安裝成本；同時使用了可拆卸設計，降低了客戶的維護成本；
堅固耐用：使用鋁合金殼體，防護等級為IP65，不僅提高了產品的抗干擾能力，在保證產品結實耐用的同時，克服了潮濕引起的傳感器過早失效，從而延長使用壽命；
應用范圍廣：產品提供多種電氣輸出以適應各種用戶的要求；同時可根據客戶的實際要求提供個性化產品。
Outstanding performance: Using high-quality industrial A-grade Pt100 and Pt1000 platinum resistance sensitive elements, combined with advanced manufacturing technology, not only ensures the product has outstanding long-term stability, but also ensures that the product has high measurement accuracy;
Low cost of use and maintenance: Provide a variety of installation methods to facilitate installation in various occasions, and provide corresponding installation accessories to shorten installation time and reduce installation costs; at the same time, detachable design is used to reduce maintenance costs for customers;
Sturdy and durable: The use of aluminum alloy shell, the protection level is IP65, not only improves the anti-interference ability of the product, but also overcomes the premature failure of the sensor caused by moisture while ensuring the product is strong and durable, thereby prolonging the service life;
Wide range of applications: The product provides a variety of electrical outputs to meet the requirements of various users; at the same time, it can provide personalized products according to the actual requirements of customers.

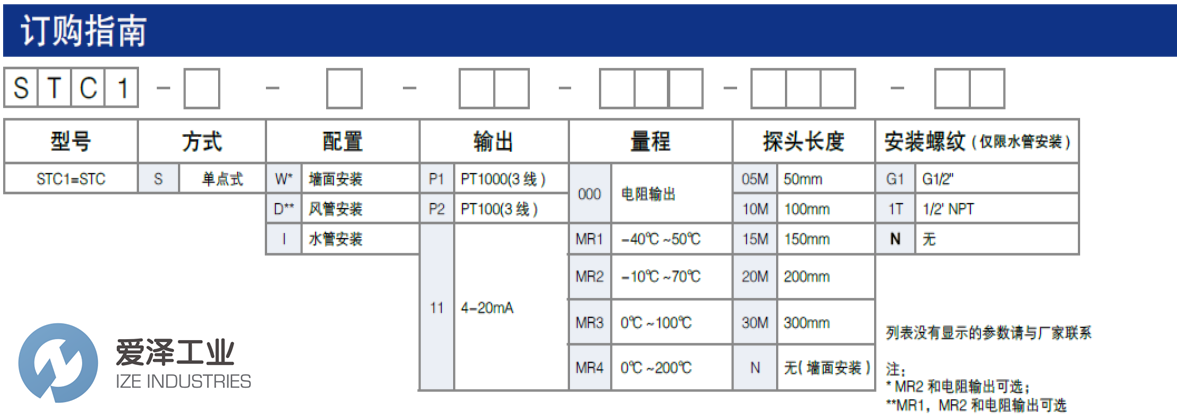

SETRA溫度傳感器STC系列選型
SETRA溫度傳感器STC系列其他常用型號：
SETRA STC1 SIP200010MG1
SETRA STC1SI1 1 MR330MG1
SETRA STC1-S-I-11-MR3-05M-G1
SETRA STC1-S-D-1 1-MR3-20M-N
SETRA STC1SI11MR305M1T
SETRA Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA溫度傳感器STC1SI11MR305M1T的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
