DYNALCO轉速表SPD100-1產品參數
SPECIFICATIONS | |
External Power Requirements: | All models are signal-powered. Lighted versions: 12 or 24 Vdc, depending on model. |
Display: | Four active digits (0 to 9999), non-blinking LCD display; character height of 0.5 inches (14 mm). Display contrast increases with increasing ambient light. |
Input Valve Voltage: | From pickups, pulsers, shaft encoders, etc. |
Input Signal Frequency: | Maximum input signal frequency of 20,000 Hz. Lowest frequency range limited by gate time and corresponding numerical display. |
Isolated Circuit: | All circuitry is totally floating, i.e. totally isolated and insulated from the case and from ground. |
Operating Temperature Range: | –5o F to +175oF (–20o C to +80oC) |
Storage: | –40oF to +195oF (–40oC to +90o C). |
Vibration: | MIL STD 810C; Method 514.2;Curve Q; Procedure V; Modified to 500 Hz upper limit. 5 Hz to 10 Hz @ 0.2 inches D.A.; 10 Hz to 18 Hz @ 1.0 g (peak); 18 Hz to 57 Hz @ 0.06 inches D.A.; 57 Hz to 500 Hz @ 10 g (peak). |
Accuracy: | One rpm resolution; within 0.5% (0.1% typical at room ambient) under all combined environmental conditions. |
Gate Time Ranges: | SPD-100 Series : field-selectable from 0.26 to 5.7 seconds. |
This accommodates calibrations for an extremely broad range of corresponding pulses per second | |
Magnetic Pickups | Dynalco Magnetic Pickups M102 and M107 are used with the SPD-100 Series in most applications. Refer to Dynalco Magnetic Pickup brochure for various types and characteristics. |
Weight: | 1 lb (0.45 kg) |
DYNALCO轉速表SPD100產品介紹

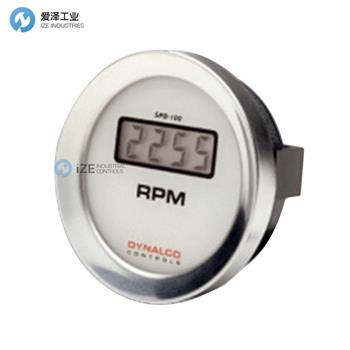

TACHOMETER: signal-powered, 4- digit, intrinsically safe, unlighted display
The SPD-100 is a solid- state, intrinsically safe tachometer. The gate time range (0.26 to 5.70 seconds) is field- programmable. It is well- sealed for rugged indoor and outdoor applications. It has 4-digit, unlighted, LCD display. CSA and ABS Type approved.
測速儀：信號供電、4 位、本安型、不發光顯示器
SPD-100是一種固態、本質安全的轉速計。門限時間范圍（0.26 到 5.70 秒）是現場可編程的。它密封良好，適用于惡劣的室內和室外應用。它有4位不發光的LCD顯示屏。CSA和ABS型式批準。
DYNALCO轉速表其他常見型號：
DYNALCO SPD-100
DYNALCO SPD-100L
DYNALCO SPD-108
DYNALCO SPD-108L
DYNALCO SPD100-1
DYNALCO INSTRUMENTS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DYNALCO轉速表SPD100-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DYNALCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
