TOPWORX開關7系列技術參數
Features |
SPST or SPDT contacts |
AC/DC, NO/NC flexibility |
Stainless steel housings |
3,000 psi (206 bars) operating pressure |
-50 °C to +105 °C (-58 °F to +221 °F) operating temperature |
360° adjustable |
Options |
-50 °C to +204 °C (-58 °F to +400 °F) high temperature |
Quick disconnect connector |
Underwater capabilities |
LED indication |
TOPWORX開關7系列介紹
液壓/氣動缸行程終點傳感器Stroke-To-GO氣缸接近傳感器為氣動和液壓缸提供精確的行程終點位置指示。外殼設計超出汽車行業標準，采用不銹鋼棒材加工而成，可承受高達 3,000 PSI（206 bar）的操作壓力（經 UL 4X 爆破要求測試），同時還能承受極端的外部條件，如焊渣、冷卻劑、切削液 。Stroke-to-GO包含相同的70系列GO Switch機構，該機構已在最嚴格的應用領域中得到驗證。這種獨特的設計在氣缸位置結束行程指示方面提供了最大的好處。

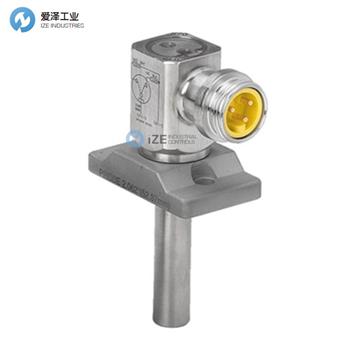

Hydraulic/pneumatic cylinder end-of-stroke sensors Stroke-To-GO cylinder proximity sensors provide precise end-of-stroke position indication on pneumatic and hydraulic cylinders. Designed to exceed automotive industry standards,the housing is machined from stainless steel bar stock to handle pressures to 3,000 PSI (206 bars) operating (tested to UL's 4X burst requirement) while withstanding the extreme external conditions such as weld slag, coolants, cutting fluids,physical abuse and even high temperatures. Stroke-to-GO incorporates the same 70 Series GO Switch mechanism that has been proven in the field in the most rigorous applications.This unique design offers the greatest benefits in cylinder position end-of-stroke indication.
TOPWORX開關7E系列其他常用型號：
TOPWORX 7E-43658-DCA
TOPWORX 7E-43657-DCD
TOPWORX 7E-43752-F4
TOPWORX 7E-33658-DCA
TOPWORX 7E-43752-F20
TOPWORX 7E-43752-F44199
TOPWORX 7E-43752-F2
TOPWORX 7E-23658-DCA
TOPWORX 7E-23658-A3
TOPWORX switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TOPWORX開關7E-43658-DCA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TOPWORX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TOPWORX開關7系列7E-43658-DCA技術參數及介紹
