KüBLER編碼器H120系列技術參數
Dimension | ? 100 mm |
Shaft type | 12 mm hollow shaft, blind hole |
Flange type | ? 100.00 mm |
Working temperature | -40 °C ... +100 °C |
Protection level | IP66 |
Connection types | Radial cable |
Max. rotational speed | 6.000 min-1 |
Weight | 1800 g |
Scanning | optical |
Resolution max. | 5.000 ppr incremental |
Supply voltage | 5 V DC |
Interfaces | Push-pull |
KüBLER編碼器H120系列介紹
增量編碼器Sendix H120是大型電機和發電機的理想選擇。HD-Safety-Lock? - 具有堅固軸承結構和集成軸承絕緣的最新一代重型空心軸設計，它具有高度的準確性和極其堅固的性能。雙重保護軸、寬溫度范圍和高保護性，即使在最不利的條件下也能使用。長達28毫米的特別大的空心軸、各種安裝解決方案和連接方式在安裝過程中提供了最大的靈活性。
The incremental encoder Sendix H120 is ideal for large motors and generators. It is highly accurate and extremely robust thanks to HD-Safety-Lock? - the Heavy Duty hollow shaft design of the latest generation with strong bearing construction and integrated bearing insulation. The double-protected shaft, the wide temperature range and the high protection enable use even under the most adverse conditions. The particularly large hollow shaft up to 28 mm, the variety of mounting solutions and connection variants offer maximum flexibility during installation.

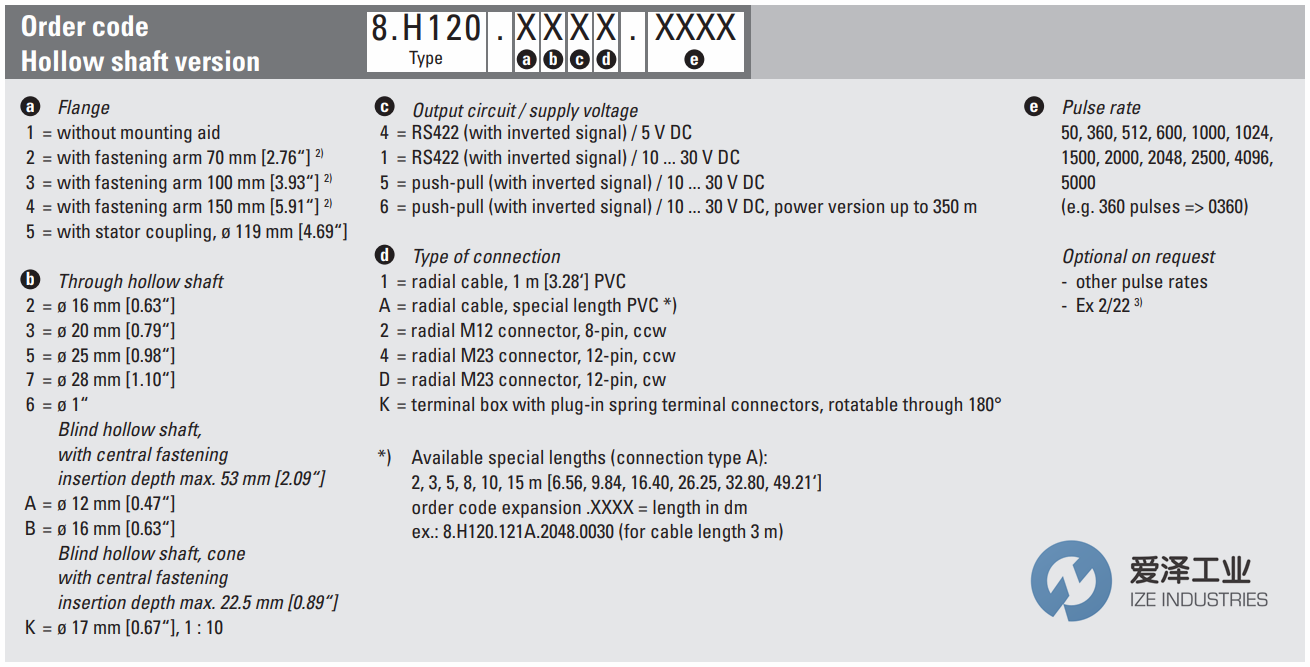

KüBLER編碼器H120系列選型
KüBLER編碼器H120系列其他常用型號：
KüBLER 8.H120.4B6A.1024.0020
KüBLER 8.H120.121A.2048.0030
KüBLER 8.H120.4B5K.2048
KüBLER 8.H120.0354.1024.S002
KüBLER 8.H120.5310.2048.S001
KüBLER 8.H120.3251.1024
KüBLER 8.H120.4A51.1024
KüBLER 8.H120.475K.0050
KüBLER 8.H120.035K.1024.S002
KüBLER Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KüBLER編碼器8.H120.4B6A.1024.0020的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KüBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
KüBLER編碼器H120系列8.H120.4B6A.1024.0020介紹及選型
