FW MURPHY液位開關LS200NDVO技術規格
Body: | Nickel-plated; optional 316 stainless steel |
Float: | 304 stainless steel |
Pressure Rating: | 2000psig (13.8 MPa) [138 bar] |
Process Connection: | 2” NPT |
DVO Valve: | 3-way N.C. w/manual operator, all connections 1/8” NPT |

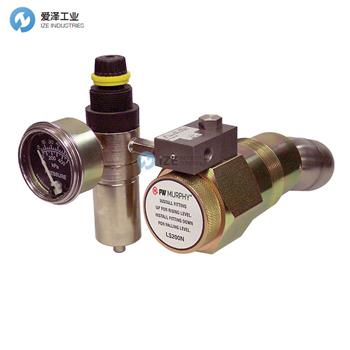

FW MURPHY液位開關LS200系列介紹
LS200系列液位開關專為惡劣的氣體壓縮機洗滌器應用而設計，采用堅固的設計，僅在液位上升時跳閘。提供電動和氣動兩種型號，儀器可以直接擰入容器中，也可以通過外部浮子室安裝。鍍鎳主體提供增強的腐蝕保護，而304不銹鋼浮子可在0.55比重和較重的流體中運行。
附加功能包括：
額定工作壓力為 2000 psi (13.8 MPa) [138 bar]
不銹鋼型號可用于腐蝕性環境
LS200NDVO 是不帶壓力調節器的自卸閥操作器 (DVO)，適用于系統提供過濾調節器以將儀表質量的空氣或氣體作為控制介質的應用。
Designed for harsh gas compressor scrubber applications, the LS200 Series Liquid Level Switches feature a robust design that trips on rising liquid level only. With both electric and pneumatic models available, the instruments screw directly into the vessel or can be mounted via an external float chamber. The nickel-plated body provides enhanced corrosion protection while the 304 stainless steel float operates in 0.55 specific gravity and heavier fluids.
Additional features include:
Rated for 2000 psi (13.8 MPa) [138 bar] working pressure
Stainless steel models available for corrosive atmospheres
LS200NDVO is the Dump Valve Operator (DVO) without the pressure regulator for those applications where the system provides a filter regulator for instrument-quality air or gas as the control medium.
FW MURPHY液位開關LS200系列其他常用型號：
FW MURPHY LS200
FW MURPHY LS200SS
FW MURPHY LS200NDVOR
FW MURPHY LS200NDVO
FW MURPHY LS200N
FW MURPHY Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FW MURPHY液位開關LS200NDVO的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FW MURPHY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FW MURPHY液位開關LS200NDVO技術參數
