BALLUFF傳感器BES516-300-S295/0.912"-S4技術參數
Dimension | 51 x 48 x 23.16 mm |
Style | D12.7 |
Range | 2 mm |
Switching output | PNP normally open (NO) |
Switching frequency | 10 Hz |
Housing material | Stainless steel (1.4104), nickel plated |
Material sensing surface | Ceramic |
Connection | Connector, M12x1-Male, 4-pin |
Operating voltage Ub | 10...30 VDC |
Ambient temperature | -25...70 °C |
Approval/Conformity | CE, cULus, EAC, WEEE |

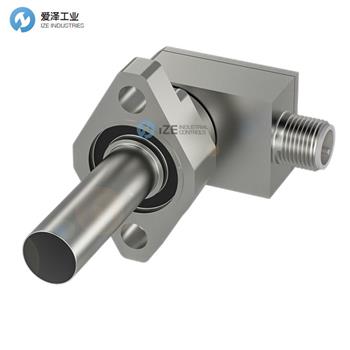

BALLUFF傳感器BHS003H系列產品介紹
額定壓力電感式傳感器可承受高達500 bar的壓力。因此，它們非常適合用于液壓系統的位置監控，例如液壓缸的終端位置驗證或閥門位置監控。
Pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

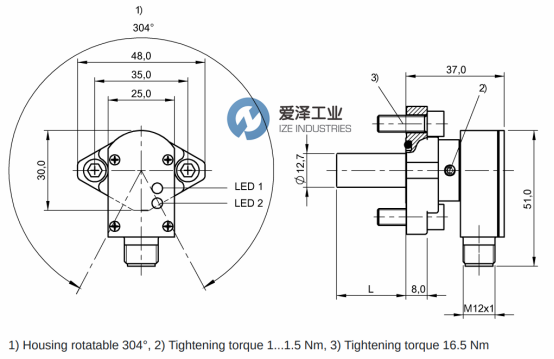

BALLUFF傳感器BES516-300-S295/0.912"-S4技術尺寸
BALLUFF傳感器BHS003H系列其他常用型號：
BALLUFF BES516-300-S295/1.025"-S5
BALLUFF BES516-300-S295/1.750"-S5
BALLUFF BES516-300-S295/1.350"-S4
BALLUFF BES516-300-S295/1.500"-S4
BALLUFF BES516-300-S295/1.500"-S5
BALLUFF BES516-300-S295/1.592"-S4
BALLUFF BES516-300-S295/1.750"-S4
BALLUFF BES516-300-S295/0.912"-S4
BALLUFF BES516-300-S295/1.025"-S4
BALLUFF BES516-300-S295/1.250"-S5
BALLUFF BES516-300-S295/1.300"-S4
BALLUFF BES516-300-S295/1.225"-S4
BALLUFF BES516-300-S295/1.250"-S4
BALLUFF senser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BALLUFF傳感器BES516-300-S295/0.912"-S4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BALLUFF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BALLUFF傳感器BES516-300-S295/0.912"-S4技術參數及尺寸
