KUBLER編碼器8.5000.8352.2000技術規格
Code | 8.5000.8352.2000 |
Type | 8.5000 |
Flange | 8 = clamping flange, IP65 ? 58 mm [2.28“] |
Shaft (? x L), with flat | 3 = ? 10 x 20 mm [0.39 x 0.79“] |
Output circuit (with inverted signal) / supply voltage | 5 = push-pull / 10 ... 30 V DC |
Type of connection – cable | 2 = radial cable, 1 m [3.28‘] PVC |
Pulse rate | 2000 |
KUBLER編碼器5000系列介紹
由于采用Safety-Lock?設計的堅固軸承結構，Sendix 5000和5020具有很高的抗振動性且防止安裝錯誤。
堅固的外殼，高達IP67的高防護等級以及-40°C至+ 85°C的寬溫度范圍，使該產品系列成為所有應用的理想編碼器。
?由于“ Safety-LockTM設計”中堅固的軸承結構，增加了抗振性和安裝誤差容忍度，消除了機器停機時間和維修費用。
?確保很高的現場擊穿安全性，并且由于其耐壓鑄外殼和高達IP67的防護等級，因此也適合在室外使用。
?空心軸編碼器上的拆卸環。
?寬溫度范圍，-40℃ ... + 85℃。
Due to their sturdy bearing construction in Safety-Lock? Design,the Sendix 5000 and 5020 offer high resistance against vibration and installation errors.
The rugged housing, high protection level of up to IP67, as well as the wide temperature range of -40°C up to +85°C, make this product range the perfect encoder for all applications.
? Increased resistance against vibrations and tolerance of installation errors, elimination of machine downtime and repairs thanks to sturdy bearing construction in “Safety-LockTM Design”.
? Ensures highest safety against field breakdowns and is thus suitable also for outside use thanks to its resistant die-cast housing and protection up to IP67.
? Undetachable clamping ring on hollow shaft encoders.
? Wide temperature range, -40℃ ... +85℃.

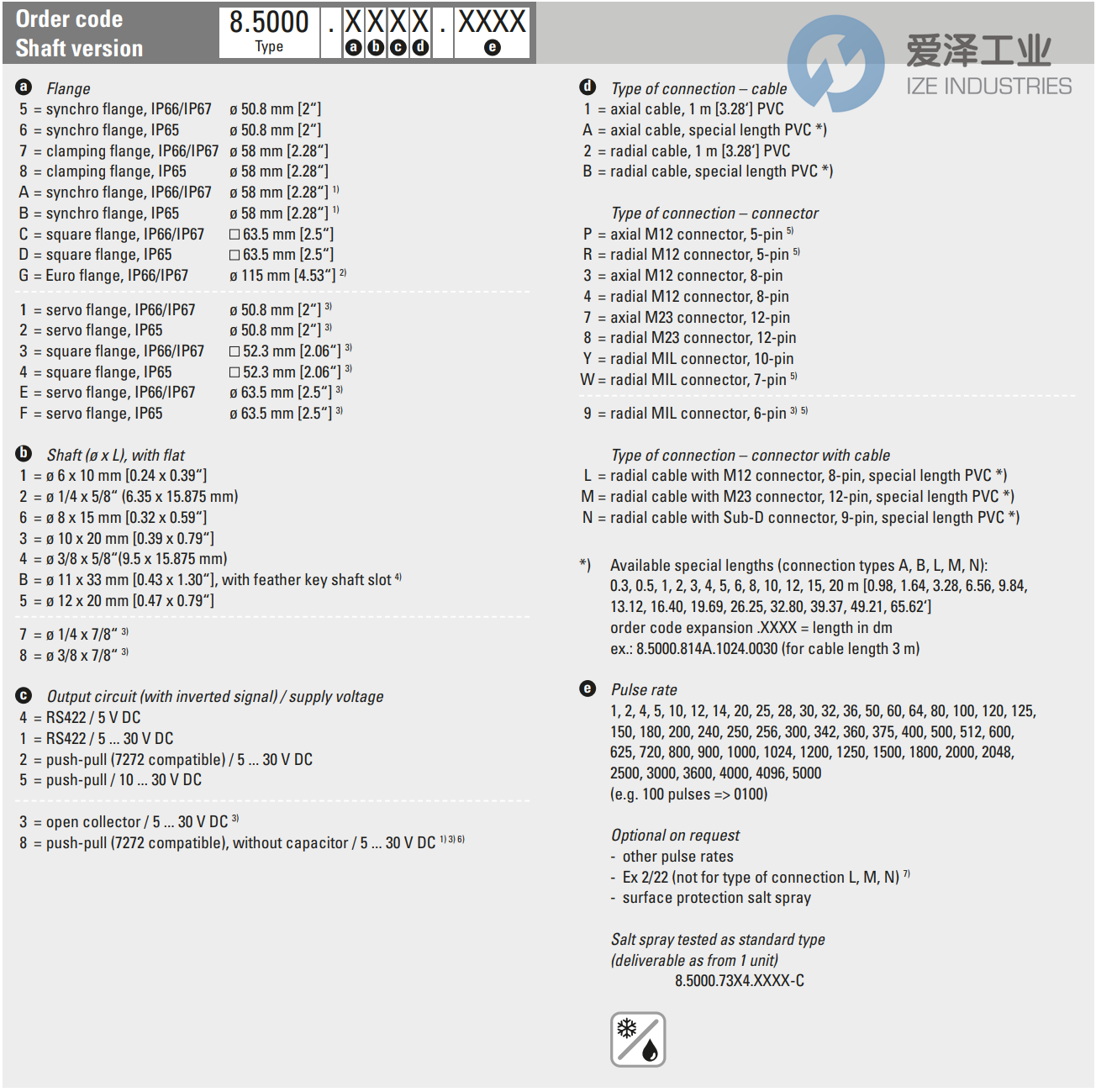

KUBLER編碼器5000系列選型
KUBLER編碼器5000系列其他常用型號：
KUBLER 8.5000.8352.2000
KUBLER 8.5000.8318.5000
KUBLER 8.5000.8354.1000
KUBLER 8.5000.8358.0500
KUBLER 8.5000.8351.0500
KUBLER 8.5000.6324.4096
KUBLER 8.5000.B152.1000
KUBLER 8.5000.B157.5000
KUBLER 8.5000.037K.0005.S028
KUBLER 8.5000.0010.1024.S059
KUBLER Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.5000.8352.2000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
KUBLER編碼器5000系列8.5000.8352.2000介紹及選型
