KUBLER編碼器M3661系列技術參數
Technical data | |
MECHANICAL | |
Dimension | ? 36 mm |
Shaft type | 6 mm shaft, with flat surface |
Flange type | ? 36.00 mm |
Working temperature | -40 °C ... +85 °C |
Protection level | IP65 |
Connection types | Axial cable |
Max. rotational speed | 6.000 min-1 |
Weight | 200 g |
ELECTRICAL | |
Scanning | magnetic |
Resolution max. | 16 bits multiturn |
Supply voltage | 10...30 V DC |
Interfaces | Analog 0–10 V |
KUBLER編碼器M3661系列介紹
具有模擬輸出和磁傳感器技術的多圈 Sendix M3661 / M3681絕對值編碼器基于能量收集技術，無需齒輪或電池。這使得它們特別堅固、耐用且具有成本效益。憑借其高IP67防護等級，這些編碼器可在惡劣的環境中可靠運行。其僅36毫米的緊湊設計允許在狹窄空間內輕松安裝。

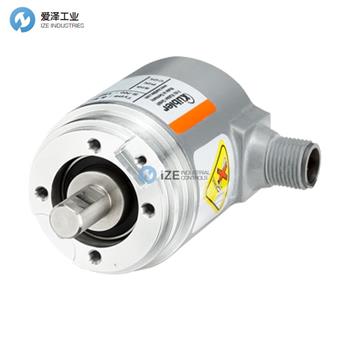

The absolute encoders Multiturn Sendix M3661 / M3681 with analog output and magnetic sensor technology are based on Energy Harvesting Technology and are equipped without gears or battery. This makes them particularly robust, durable and cost-efficient. With their high IP67 protection, these encoders provide reliable operation in the harshest environments. Their compact design of only 36 mm allows easy installation in confined spaces.
KUBLER編碼器M3661系列選型
KUBLER編碼器M3661系列其他常用型號：
KUBLER 8.M3661.1342.4412
KUBLER 8.M3661.1342.4412
KUBLER 8.M3661.433A.3112.0030
KUBLER 8.M3661.4134.3612
KUBLER 8.M3661.2332.3112
