TRANS-TEK傳感器0245-0000技術參數
MODEL NUMBER | 0245-00000 |
WORKING RANGE, tINCHES (MM) | 2.00 (50.8) |
MAX. USABLE RANGE, tINCHES (MM) | 2.75 (69.8) |
INPUT VOLTAGE, VDC | 6.0 Min. to 30 Max. |
NOMINAL F.S. OUTPUT, +VDC with UNI OADED OUTPUT | |
@ 6V INPUT | 3.9 |
@ 15V INPUT | 10.2 |
@ 24V INPUT | 16.5 |
@ 30V INPUT | 20.7 |
INPUT CURRENT | 8.3 mA @ 6V Input to 52 mA @ 30V Input |
2 NON-LINEARITY | ±0.5% Full Scale Over Total Working Range; ±1.0% Full Scale Over Maximum Usable Range |
INTERNAL CARRIER FREQUENCY Hz | 1500 |
% RIPPLE, RMS (NOMINAL) | 1 |
OUTPUT IMPEDANCE Ohms | 5500 |
FREQUENCY RESPONSE (3 dB down), Hz | 110 |
TEMPERATURE RANGE | -65°F to +250°F (-54°C to +121°C) |
RESOLUTION | Infinite |

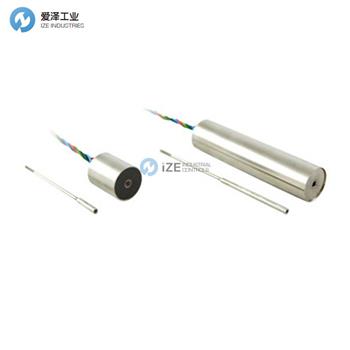

TRANS-TEK傳感器240系列產品介紹
Series 240
General Purpose DC LVDTs
The Series 240 DC-DC LVDTs are an integrated package consisting of a precision linear variable differential transformer, a solid state oscillator, and a phase-sensitive demodulator. The transducer is designed for excellent linearity, infinite resolution, and high sensitivity. Input and output circuits are electrically isolated from each other and from the coil assembly housing, making them usable directly in floating or ground return systems. DC indicators, recorders, and control systems can usually be driven directly by the large DC output. The core, when displaced axially within the coil assembly, produces a voltage change in the output directly proportional to the displacement.
Trans-tek Series 240 DC-DC LVDTs, General Purpose DC LVDTs, linear variable differential transformer, solid state oscillator, phase-sensitive demodulator
KEY FEATURES
Ranges from ±0.05"to ±4.0”
Non-linearity < 0.5%
6 to 30 VDC Excitation
Stainless Steel Construction
240系列
通用直流 LVDT
240 系列 DC-DC LVDT 是一個集成封裝，由精密線性可變差分變壓器、固態振蕩器和相敏解調器組成。 該傳感器專為出色的線性度、無限分辨率和高靈敏度而設計。 輸入和輸出電路彼此電氣隔離，并與線圈組件外殼電氣隔離，使其可直接用于浮動或接地回路系統。 直流指示器、記錄器和控制系統通?？梢杂纱笾绷鬏敵鲋苯域?qū)動。 當鐵芯在線圈組件內發生軸向位移時，會在輸出端產生與位移成正比的電壓變化。
Trans-tek 240 系列 DC-DC LVDT、通用直流 LVDT、線性可變差分變壓器、固態振蕩器、相敏解調器
主要特征
范圍從 ±0.05" 到 ±4.0”
非線性 < 0.5%
6 至 30 VDC 勵磁
不銹鋼結構
TRANS-TEK傳感器其他常用型號：
TRANS-TEK 0240-00000
TRANS-TEK 0241-00000
TRANS-TEK 0242-00000
TRANS-TEK 0243-00000
TRANS-TEK 0244-00000
TRANS-TEK 0245-00000
TRANS-TEK 0246-00000
TRANS-TEK 0246-00005
