BAUMER HUBNER編碼器POG9系列技術參數
Technical data | |
Technical data - electrical ratings | |
Voltage supply | 9...30 VDC |
Consumption w/o load | ≤100 mA |
Pulses per revolution | 300 … 5000 |
Phase shift | 90 ° ±20° |
Duty cycle | 40…60 % |
Reference signal | Zero pulse, width 90° |
Sensing method | Optical |
Output frequency ≤120 kHz | ≤120 kHz |
Output signals | K1, K2, K0 + inverted |
Output stages | HTL-P (power linedriver) |
Interference immunity | EN 61000-6-2 |
Emitted interference | EN 61000-6-3 |
Approval | CE |
Technical data - mechanical design | |
Size (flange) | ?115 mm |
Shaft type | ?11 mm solid shaft |
Technical data - mechanical design | |
Admitted shaft load | ≤250 N axial |
Flange | EURO flange B10 |
Protection EN 60529 | IP 56 |
Operating speed | ≤12000 rpm (mechanical) |
Operating torque typ. | 2 Ncm |
Rotor moment of inertia | 200 gcm2 |
Material | Housing: aluminium die-cast |
Operating temperature | ﹣30...+100 °C |
Resistance | IEC 60068-2-6 |
Corrosion protection | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
Explosion protection | II 3 G Ex nA IIC T4 Gc (gas) |
Connection | Terminal box |
Weight approx. | 1,4 kg |

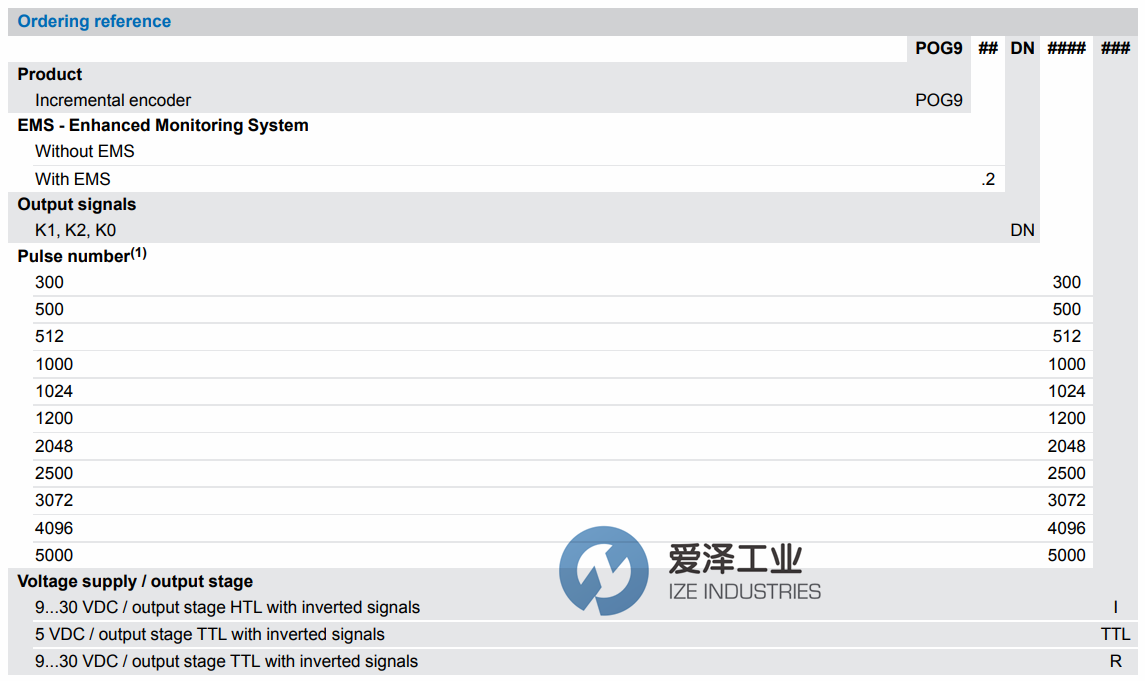

BAUMER HUBNER編碼器POG9系列介紹及選型
實心軸編碼器 ?11 mm
光學感應方式
歐式法蘭 B10
非常高的抗沖擊性
輸出級HTL或TTL
TTL 輸出驅動器，用于最長 550 m 的電纜長度

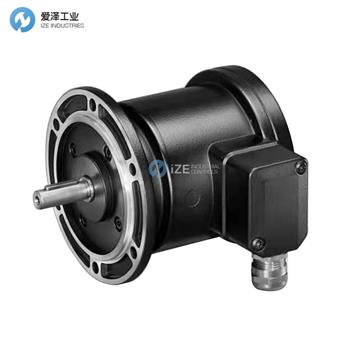

Encoder with solid shaft ?11 mm
Optical sensing method
EURO flange B10
Very high resistance to shock
Output stage HTL or TTL
TTL output driver for cable length up to 550 m
