ZIEGLER電流表DE系列技術規格
Type DE | Moving-Iron panel meter |
Front Dimension |
|
Over range | 2 times, 3 times |
Measuring Ranges | Refer to table inside |
Terminal Protection | Full sized polycarbonate back cover |
Panel Fixing | Mounting Clamps |
Red Index Pointer | None |
Front facia | Normal glass |
Colour of Bezel | Black, Red, Blue, Yellow, White |
Position of use | Vertical on request 0....180 |
Dial | Standard scale same as measuring range |
ZIEGLER電流表DE系列介紹
安裝在模制聚碳酸酯外殼中的動鐵平板儀表DE 48/72/96/144適用于測量15 ... 400Hz頻率范圍內的交流電流和15 ... 100Hz頻率范圍內的電壓。
動鐵表指示的rms值實際上與波形無關,即使是高諧波也是如此。對于極端波形(例如相位選通控件)和高于100KHz的頻率,可能會出現指示錯誤。
這些儀表在配電盤和發電機組面板中具有多個優點。 可以在面板開孔鑲嵌安裝中安裝米數。 對于CT操作的電流表,可以根據CT比率安裝刻度盤。玻璃和擋板可以輕松更換。

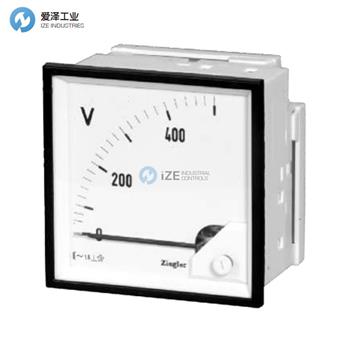

The moving iron panel meters, DE 48/72/96/144 housed in moulded polycarbonate cases are suitable for the measurement of AC currents for frequency range of 15...400Hz and voltages in the frequency range of 15...100Hz.
Moving iron meters indicate rms-values practically independent of waveform even of high harmonics. Error of indication may occur for extreme waveforms (e.g. phase gating controls) & for frequencies above 100KHz.
These meters offer several advantages in switchboards and Generating Set Panels. Number of meters can be mounted in a Panel cut out Mosaic mounting). For CT operated ammeters, dials can be fitted based on CT ratio. Glass and bezel can be easily replaced.
ZIEGLER電流表DE系列其他常用型號:
ZIEGLER DE48
ZIEGLER DE72
ZIEGLER DE96
ZIEGLER DE144
ZIEGLER Ammeter NEW + ORIGINAL+ ONE YEAR WARRANTY
