SELET編碼器SI063-BS-9000-SN-1-CR-10.E201產品參數
SI063-BS-9000-SN-1-CR-10.E201 |
SI063 |
BS=A+B |
9000=1 ÷ 10000 |
SN=ELETTRONICA ELECTRONICS |
1= 5 Vdc |
CR=CONNESSIONI CONNECTIONS |
10=10mm |
SELET編碼器SI063系列產品介紹
SI063 - Serie diametro 63 mm - Flangia quadra
Tipo di flangia: Flangia quadra
Versioni monodirezionali e bidirezionali con e senza zero
Risoluzione fino a 10.000 impulsi
Elettroniche: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
Alimentazioni: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
Versioni: CA= cavo assiale L = 3 m - CR= cavo radiale L = 3 m - MP3A = connettore elettrovalvova 4 poli - MA = connettore assiale militare a 7 poli - MR = connettore radiale militare a 7 poli - M1A = connettore assiale militare a 10 poli - M1R = connettore radiale militare a 10 poli
Diametri albero: 6 - 8 - 9 - 10 mm
Gradi di protezione: IP54 - IP65 - IP67
SI063-直徑63毫米的系列-方法蘭
法蘭類型：方法蘭
具有零和不具有零的單向和雙向版本
分辨率高達10,000脈沖
電子：OCN =集電極開路NPN，OCP =集電極開路PNP，SN = NPN，SP = PNP，EA =推挽，EAP =推挽保護，E2A =推挽-線路驅動器，E2AP =推挽-受保護的線路驅動器，CL = TTL線路驅動器，CD = CMOS線路驅動器
電源：1 = 5 Vcc，2 = 10÷30 Vcc，3 = 8÷15 Vcc，6 = 5÷26 Vcc，7 = 24 Vcc（輸出5 Vcc），9 = 11÷30 Vcc
版本：CA =軸向電纜L = 3 m-CR =徑向電纜L = 3 m-MP3A = 4針電磁閥連接器-MA = 7針軍用軸向連接器-MR = 7針軍用徑向連接器-M1A =軍事軸向連接器10針-M1R = 10針軍用徑向連接器
軸直徑：6-8-9-10毫米
防護等級：IP54-IP65-IP67

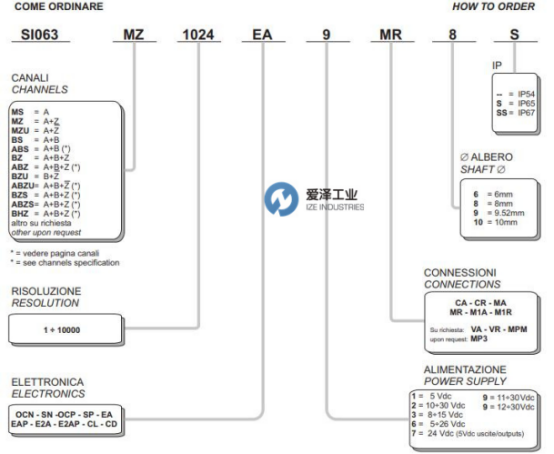

SELET編碼器SI063系列選型
SELET編碼器SI063系列其他常見型號：
SELET SI063-BS-9000-SN-1-CR-10.E201
SELET SI063
SELET SI163
SELET SI263
SELET SIC63
SELET SIM63
SELET SIAP63
SELET SIFR115
SELET Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
