REXROTH浮球開關ABZMS-35-1X/130F030S-K14技術描述

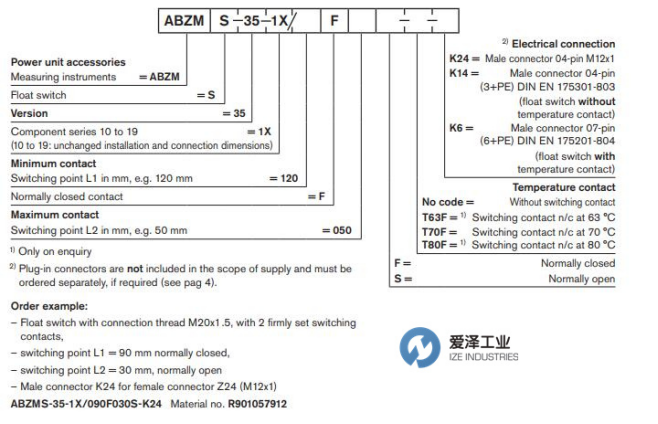

ABZMS-35-1X/130F030S-K14 |
Measuring instruments = ABZM |
Float switch = S |
Version = 35 |
Switching point L1 in mm, e.g. 120 mm = 130 |
Normally closed contact = F |
switching point L2 = 30 mm, normally open=030 |
Normally open= S |
Male connector 04-pin (3+PE) DIN EN 175301-803 (float switch without temperature contact = K14 |
REXROTH浮球開關ABZMS-35系列參數介紹
浮子開關是通過流體移動的浮子來操作的開關裝置。它們用于控制ABSKG ... NG10型小型動力裝置中的油箱液位20; 40和60。
滑動管包含兩個固定設置的簧片觸點（常閉觸點和常開觸點），它們由安裝在浮子中的永磁體進行切換。
安裝了固定設置的溫度觸點（選件）以監控最大溫度。液壓油溫度。
液位開關功能
當油位下降時，浮子到達切換點時，觸頭將磁性操作。觸點的切換位置一直保持到浮子由于油位上升而再次通過切換點為止。
開關點L1是常閉觸點，開關點L2的觸點功能可選地是常閉或常開觸點。
溫度接觸功能
當溫度達到確定的響應溫度時，會切換受溫度影響的雙金屬板。溫度觸點不適用于溫度控制，而僅適用于關機功能。

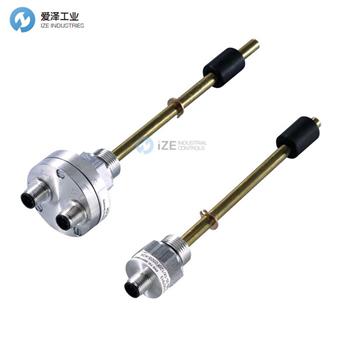

Product description
Float switches are switching devices operated by a float moved by fluid. They are used to control the tank fluid levels in small power units type ABSKG ... NG10; 20; 40 and 60.
The sliding tubes contain two fixedly set reed contacts (normally closed contact and normally open contact) that are switched by the permanent magnets installed in the float.
Fixedly set temperature contacts (option) are fitted to monitor the max. hydraulic fluid temperature.
Function of level switch
When the float reaches the switching points while the oil level is falling, the contacts are operated magnetically. The switching positions of the contacts are maintained until the float passes the switching points again due to a rising oil level.
Switching point L1 is a normally closed contact, the contact function of switching point L2 is optionally a normally closed or normally open contact.
Temperature contact function
A bimetal plate, which is influenced by temperature, switches when a firmly set response temperature is reached. The temperature contact is not suitable for temperature controlling, but merely for a shutdown function.
REXROTH浮球開關ABZMS-35系列產品介紹及選型
REXROTH浮球開關ABZMS-35系列其他常見型號：
REXROTH ABZMS-35-1X/090F030S-K24 R901057912
REXROTH ABZMS-35-1X/120F050S-K24 R901057913
REXROTH ABZMS-35-1X/165F085S-K24 R901057914
REXROTH ABZMS-35-1X/090F060S-K24 R901088809
REXROTH ABZMS-35-1X/120F090S-K24 R901088810
REXROTH ABZMS-35-1X/165F135S-K24 R901088811
REXROTH ABZMS-35-1X /090F030S-T70F-K24 R901057916
REXROTH ABZMS-35-1X /120F050S-T70F-K24 R901057918
REXROTH ABZMS-35-1X /165F085S-T70F-K24 R901057920
REXROTH ABZMS-35-1X /090F060S-T70F-K24 R901088812
REXROTH ABZMS-35-1X /120F090S-T70F-K24 R901088813
REXROTH ABZMS-35-1X /165F135S-T70F-K24 R901088814
REXROTH Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于REXROTH浮球開關ABZMS-35-1X/130F030S-K14 的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH浮球開關ABZMS-35-1X/130F030S-K14技術數據及特征
