MICROE編碼器M1500H系列技術參數
Dimensions | 20.6 x 12.7 x 8.4 mm |
Interface, Digital | A-quad-B with index |
Interface, Analog | - |
Interpolation | up to 40x in sensor |
Resolutions | 6.6K to 655K CPR |
Accuracy Class | up to +/- 2 arc-seconds |
Max Speed | 13,000 rpm |
Operating Environment | Atmospheric |
Highest Accuracy Class | +/- 2 arc-seconds |
Diameters | up to 108mm |
Index | Yes |
Material | Soda lime glass |
Coefficient of Thermal Expansion | 8ppm/°C |
Mounting | Hub |

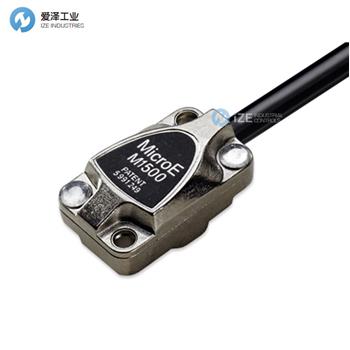

MICROE編碼器M1500H系列介紹
MicroE Mercury 1500H套件編碼器比任何其他編碼器更小、性能更高、安裝更快且更易于使用。微型傳感器適合非常狹窄的空間，并具有廣泛的對準公差，可快速輕松地進行設置。
適合狹小空間的微型傳感器
寬對準公差使安裝和設置更容易
模擬輸出可由客戶的電子設備插入，分辨率高達每轉 655,000 計數
低功耗有助于系統的熱穩定性
MicroE Mercury 1500H kit encoders are smaller, higher performance, faster to install, and easier to use than any other encoder. The tiny sensor fits into very tight spaces, and has broad alignment tolerances for fast and easy setup.
Miniature sensor fits into tight spaces
Wide alignment tolerance make for easy installation and setup
Analog outputs can be interpolated by the customer’s electronics for resolution up to 655,000 counts per revolution
Low power consumption aids in thermal stability of the system

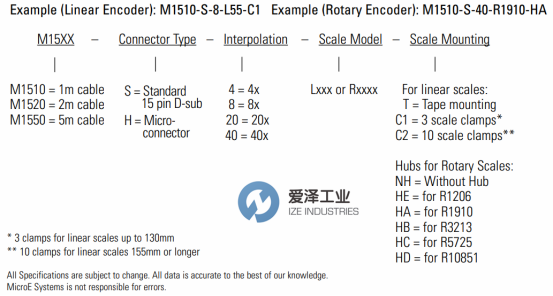

MICROE編碼器M1500H系列選型
MICROE編碼器M1500H系列其他常用型號：
MICROE M1510H-04
MICROE M1520H-04
MICROE M1550H-04
MICROE M1510H-08
MICROE M1520H-08
MICROE M1550H-08
MICROE M1510H-20
MICROE M1520H-20
MICROE M1550H-20
MICROE M1510H-40
MICROE M1520H-40
MICROE M1550H-40
MICROE encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROE編碼器M1510H-40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICROE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
MICROE編碼器M1500H系列M1510H-40技術參數及選型
