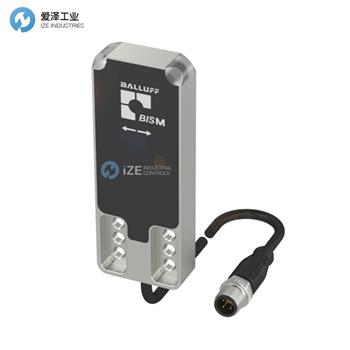

BALLUFF讀寫器BIS014K/BISM-458-045-001-07-S4技術參數
Product Group | HF (13.56 MHz) |
Dimension | 40 x 15 x 105 mm |
Installation | metal-free (clear zone) |
Antenna type | Rod |
Supported data carrier types | DIN ISO 14443, DIN ISO 15693 |
Connection | Connector, M12x1-Male, 4-pin |
Housing material | Zinc, Die casting, nickel plated |
Interface | IO-Link 1.1 |
Process data IN | 10 bytes |
Process data OUT | 10 bytes |
Operating voltage Ub | 18...30 VDC Supports only LPS/Class 2 |
Ambient temperature | 0...70 °C |
IP rating | IP67 |
Approval/Conformity | CE, FCC Part 15, IC RSS-210, EAC, WEEE |
BALLUFF讀寫器BIS014K/BISM系列介紹及選型
BIS M使用13.56 MHz的高頻（HF）并支持符合DIN ISO 15693的標準。帶有集成處理器單元的讀取頭可以通過IO-Link，RS232，TCP / IP或USB直接連接到更高級別的控制系統。 通過串行子網16 TM。 帶有獨立或集成讀取頭的各種配置，尺寸和變體使您能夠滿足大多數要求。
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

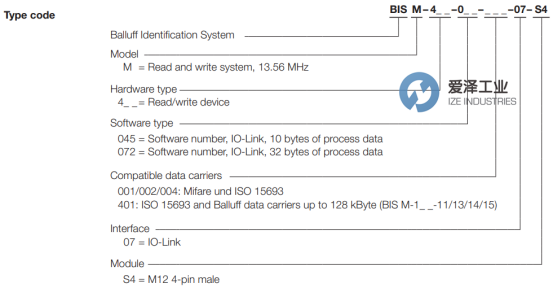

BALLUFF讀寫器BIS014K/BISM系列其他常用型號：
BALLUFF BIS014J-BISM-408-045-001-07-S4
BALLUFF BIS014K-BISM-458-045-001-07-S4
BALLUFF BIS019T-BISM-414-045-401-07-S4
BALLUFF BIS00W6-BISM-411-068-001-00-S115
BALLUFF BIS00W1-BISM-410-067-001-04-S92
BALLUFF BIS012N-BISM-405-045-001-07-S4
BALLUFF BIS0106-BISM-402-072-004-07-S4
BALLUFF BIS0105-BISM-402-072-002-07-S4
BALLUFF BIS00M1-BISM-402-045-004-07-S4
BALLUFF BIS00RU-BISM-402-007-004-00-S115
BALLUFF BIS00EN-BISM-402-007-002-00-S115
BALLUFF Reader NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BALLUFF讀寫器BIS014K/BISM-458-045-001-07-S4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BALLUFF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
