PEMUK電流探頭CWT系列技術參數
Performance | |
Peak current | 30A peak to 6kA peak |
Output | ±6.0V peak |
High Frequency Bandwidth (-3dB) | 30MHz |
Low Frequency Bandwidth (-3dB) | Varies with model type |
Accuracy (typ.) | Calibrated to ±0.2% with conductor central in the Rogowski loop |
Operating temperature range | 0℃ to +40℃ (Integrator electronics) |
Coil Lengths | 80mm (custom lengths available) |
Coil thickness | 1.7mm max. |
Peak coil insulation | 1.2kV peak |
Cable Length (coil to integrator) | 1m (custom lengths available) |
Power Supply | ‘B’ Battery 4 x AA (1.5V standard alkali batteries) |
Output load | ≥ 100.0 kOhm (for rated accuracy, rated sensitivity) |
PEMUK電流探頭CWT系列介紹

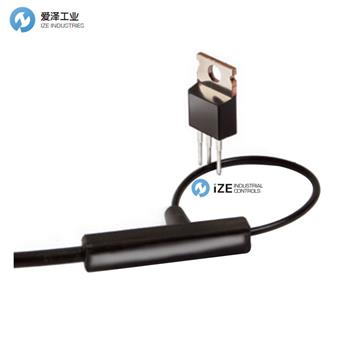

CWT Ultra-mini具有極薄的可繞夾式Rogowski線圈，其橫截面通常為1.6mm。 這種薄的線圈可以在功率電子轉換器最難到達的部分中測量電流，而對被測電路的干擾可以忽略不計。
The CWT Ultra-mini has an extremely thin, clip-around Rogowski coil of typically 1.6mm cross-section. Such a thin coil enables currents to be measured in the most difficult to reach parts of a power electronic converter with negligible disruption to the circuit under test.
PEMUK電流探頭CWT系列選型
PEMUK電流探頭CWT系列其他常用型號：
PEMUK CWTUM015
PEMUK CWTUM03
PEMUK CWTUM06
PEMUK CWTUM1
PEMUK CWTUM3
PEMUK CWTUM6
PEMUK CWTUM15
PEMUK CWTUM30
PEMUK Current Probe NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PEMUK電流探頭CWTUM6的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PEMUK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
