NAGANO KEIKI壓力傳感器ZT15系列技術參數
Item | Description |
Fluid | Various kinds of process gases for semiconductor |
Pressure range | 0 to 0.3, 0.5, 1, 2, 3.5, 10, 20 MPa |
Connection | 1/4，3/8 UJR，VCR，JSK，CVC，etc. |
Pressure sensor seal method | Welding type |
Operating temperature | -20 to 70℃（No freezing or condensation） |
Storage temperature | -30 to 80℃（No freezing or condensation） |
Total error band | ±1.0%F.S. at 23℃(Standard) or |
Temperature coefficient | ± 0.1%F.S/℃(Accuracy±1.0%F.S)(Zero,Span)or |
Construction | Indoor use |
Weight | Approx. 180g(Excluding cable,varies depending on the fitting shape) |
NAGANO KEIKI壓力傳感器ZT15系列產品介紹
這些是為半導體工業設計的壓力變送器，其中壓力被轉換成電信號，并通過配備有蒸發涂層型半導體應變儀和內置電子電路的傳感元件進行傳輸。提供兩種類型的壓力傳感器，其中UC / EP級用于高純度氣體，而BA / GP級則在不損害氣密性的前提下降低了燃氣管道的成本。
特征
?由Co-Ni合金或SUS316L制成的高度耐腐蝕的壓力傳感器直接焊接到接頭上，具有出色的耐腐蝕性，氣密性，長期穩定性和可靠性。
?幾乎沒有死角會導致氣體污染。
?提供表壓，復合壓力和絕對壓力。

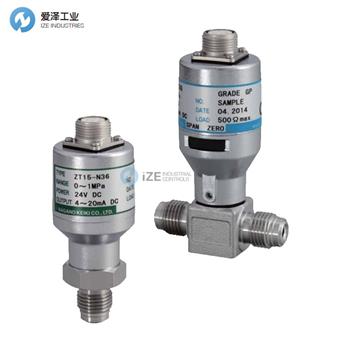

These are pressure transmitters designed for semiconductor industry, in which pressures are converted into electric signals and transmitted by the sensing element equipped with evaporation coating type semiconductor strain gauge and a built-in electronic circuit. We provide two types of pressure transducers with UC / EP Grade for high-purity gas and BA / GP Grade achieved the cost down of gas piping without impairing the airtightness.
Feature
?Highly corrosion-resistant pressure sensors made of Co-Ni alloy or SUS316L are welded directly to the fitting,giving them excellent corrosion resistance, air-tightness, long-term stability and reliability.
?Few dead spaces exist that may cause gas contamination.
?Available in gauge, compound and absolute pressures.
NAGANO KEIKI壓力傳感器ZT15系列其他常用型號：
NAGANO KEIKI ZT15-Y01-0.1-0.3MPA
NAGANO KEIKI ZT15-Y01(-15-3000PSI)
NAGANO KEIKI ZT15-Y01(-15-250PSI)
NAGANO KEIKI ZT15-Y01(-15-500PSI)
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NAGANO KEIKI壓力傳感器ZT15-Y01-15~250PSI的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
NAGANO KEIKI壓力傳感器ZT15系列ZT15-Y01-15~250PSI技術參數及介紹
