MICROE編碼器CE系列技術參數
Specifications | |
Dimensions: | 6.1 x 6.1 x 3.9 mm (CE) |
Interfaces: | A-quad-B digital |
Resolution: | 10 μm or 1 μm (linear) |
Accuracy Class: | ± 1 μm (linear glass) |
Input Voltage: | 5 VDC ± 0.5 |
Supply Current: | 30 mA, unterminated outputs |
Max Speed: | 14 m/s |
Index: | 40 μm Window |
Outputs: | A-quad-B, Index |
Operating Environment: | Atmospheric |
Scale Pitch: | 40 μm |
Repeatability:(Hysteresis) | 1 ± 1 LSB |
Weight: | 0.37 g (CE300), 0.25 g (CE) |
Grating Compatibility: | Linear and Rotary (glass only) |

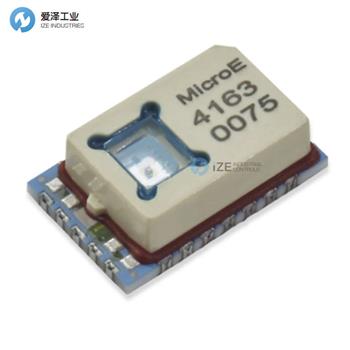

MICROE編碼器CE系列介紹
ChipEncoder是一個模塊化的數字接口SMT套件編碼器系統，將小尺寸與高分辨率結合在一起。ChipEncoder型號具有內置插值功能，可直接安裝在PC板上，通過設計集成可提供大量空間并節省成本。
ChipEncoder打破了價格性能障礙，為運動控制設計帶來了新的可能性
與PC板上的其他元件集成，實現低的總系統成本； 設計用于低成本自動化PC板組件
具有板載插補和數字輸出的高分辨率提高了運動系統的精度和穩定性
高速能力增強了運動系統性能
非接觸設計實現高可靠性
小尺寸實現了超微型、低成本的運動控制
ChipEncoder is a modular digital interface SMT kit encoder system that combines small size with high resolution. ChipEncoder models feature built-in interpolation and mount directly on your PC board, providing significant space and cost savings through design integration.
ChipEncoder breaks the price performance barrier to open new possibilities for your motion control designs
Integrates with other components on your PC board for lowest total system cost; designed for low cost automated PC board assembly
High resolution with on-board interpolation and digital output improves motion system accuracy and stability
High speed capability enhances motion system performance
Non-contact design for high reliability
Small size enables ultra-miniature, low cost motion control

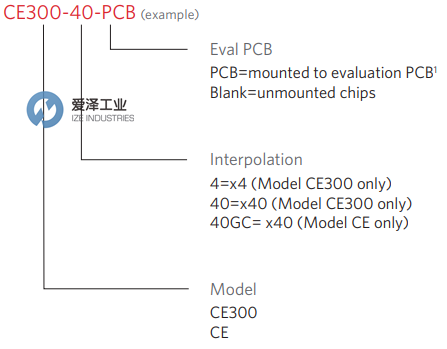

MICROE編碼器CE系列選型
MICROE編碼器CE系列其他常用型號：
MICROE CE300-4
MICROE CE300-40
MICROE CE-40GC
MICROE CE300-40-PCB
MICROE CE300
MICROE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROE編碼器CE300的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICROE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
