NAGANO KEIKI壓力傳感器ZT11系列技術參數
Item | Description |
Measurement fluid | Various kinds of process gases for semiconductor |
Connection | Compatible with 1/4 VCR,Compatible with 1/2(3/8)VCR,1/4 UJR |
Internal volume | Approx. 0.9cm3(In case of S type 1/4 UJR,Varies depending on the fitting shape) |
Pressure sensor seal method | Welding type |
Pressure range | 0 to 0.3, 0.5, 1, 2, 3.5, 10, 20 MPa |
Temperature coefficient | ±0.05%F.S./℃(Zero,Span) |
Insulation resistance | 100MΩ or more(50V DC between joint and all input output terminals) |
Electrical connections | M12 Connector connection(4 pin) |
Zero/Span adjusrment mechanism | External adjustment method(Top surface) |
Weight | Approx. 70g(In case of S type,Excluding cable,Varies depending on the fitting shape) |

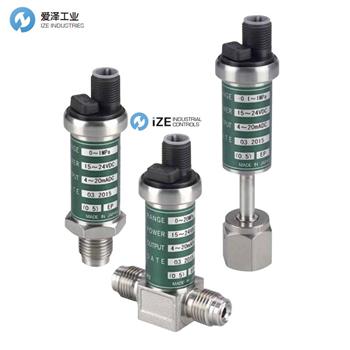

NAGANO KEIKI壓力傳感器ZT11系列介紹
這些是為半導體工業開發的壓力變送器，其中壓力被轉換成電信號并由配備有蒸發涂層型半導體應變儀和內置電子電路的傳感部分傳輸。它比傳統的壓力變送器更小巧輕便。EP/GP等級是標準的。也符合UC等級作為選項。
These are pressure transmitters developed for semiconductor industry, in which pressures are converted into electric signals and transmitted by the sensing portion equipped with evaporation coating type semiconductor strain gauge and a built-in electronic circuit. It is more small and lightweight than a conventional pressure transmitter. EP/GP grade is standard. Also conforming to the UC grade as anoption.
NAGANO KEIKI壓力傳感器ZT11系列特征
? 由SUS316L制成的高耐腐蝕壓力傳感器直接焊接到配件上，具有出色的耐腐蝕性，氣密性，長期穩定性和可靠性。CO-Ni合金是可選的（僅適用于UC級）
? 防塵和優異的防水結構（IP67）
? 可提供標準型和非易燃型。
Features
? Highly corrosion-resistant pressure sensors made of SUS316L are welded directly to the fitting, giving them excellent corrosion resistance, air-tightness, long-term stability,and reliability. CO-Ni alloy is optional(Only available in UC grade)
? Dust-protected and excellent waterproof structure(IP67)
? Available in standard type and non-incendive type.
NAGANO KEIKI壓力傳感器ZT11系列其他常用型號：
NAGANO KEIKI ZT11 45PSI
NAGANO KEIKI ZT11 75PSI
NAGANO KEIKI ZT11 150PSI
NAGANO KEIKI ZT11 300PSI
NAGANO KEIKI ZT11 500PSI
NAGANO KEIKI ZT11 750PSI
NAGANO KEIKI ZT11 1500PSI
NAGANO KEIKI ZT11 3000PSI
NAGANO KEIKI ZT11-D01(-15-3000PSI)
NAGANO KEIKI ZT11-D01(-15-250PSI)
NAGANO KEIKI ZT11-DNE（1/4”MVCR高壓)壓力范圍：-15~3000psi
