GF SIGNET電導率電極3-2820-1技術參數
Technical Details | |
MFR # | 3-2820-1 |
Cell Constant (cm?1) | 0.10 |
Electrode | 316 SST |
Process Connection | Threaded |
Thread | Reversible |
Code | 198 844 000 |

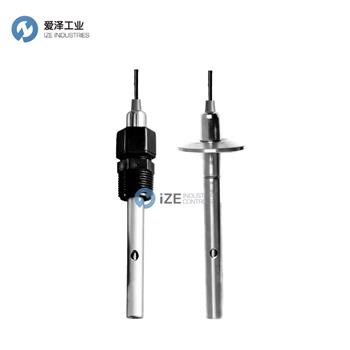

GF SIGNET電導率電極2820系列介紹
Signet Conductivity/Resistivity electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS or Titanium, but there are other materials available for maximum chemical compatibility. Reversible threads or sanitary flanges allow for maximum installation versatility.
Sanitary flange versions are availabe with an optional NIST Traceability Certificate to meeet USP requirements. Coupled with Signet patented measuring circuitry, a three decade measurement range is achieved without the need for troublesome electrode platinisation. A platinum RTD (PT1000) located within the electrode allows optimal temperature sensing.
Conductivity/Resistivity:
Wetted Materials: 316 SST or Titanium
Process Connection Choices: 3/4 inch threads for In-line or Submersion, 1.5 inch Sanitary Tri-clamp flange and 2 inch Sanitary Tri-clamp flange
Cell constants and corresponding measuring ranges: 0.01 cm-1 / 0.55 to 100 μS (18.3 mΩ to 10 KΩ)
0.1 cm-1 / 1 to 1000 μS (1 mΩ to 1 KΩ)
1.0 cm-1 / 10 to 10,000 μS (5 to 5,000 ppm)
10.0 cm-1 / 100 to 200,000 μS (50 to 100,000 ppm)
20.0 cm-1 / 200 to 400,000 μS (100 to 200,000 ppm)
Compatible Instruments: Signet Instrument Types: 8850, 8860 8900, 9900 or the 9950 with the 2850 Sensor Electronics
Thread styles are reversible threads or fixed threads
Signet電導率/電阻率電極設計用于在非常寬的動態范圍內提供通用的安裝和精確的感測。這些電極的表面光潔度可控，以確保準確性和可重復性。標準電極由316 SS或鈦制成，但也有其他材料可提供最大的化學兼容性?？赡媛菁y或衛生法蘭可實現最大的安裝通用性。
提供衛生級法蘭和可選的NIST溯源證書，以滿足USP要求。結合Signet獲得專利的測量電路，可以實現三十年的測量范圍，而無需麻煩的電極鍍鉑。位于電極內的鉑RTD（PT1000）可以實現最佳溫度感測。
電導率/電阻率：
浸濕材料：316不銹鋼或鈦
過程連接選擇：3/4英寸的直插式或浸入式螺紋，1.5英寸的衛生三夾法蘭和2英寸的衛生三夾法蘭
電池常數和相應的測量范圍：0.01 cm-1 / 0.55至100μS（18.3mΩ至10KΩ）
0.1 cm-1 / 1至1000μS（1mΩ至1KΩ）
1.0 cm-1 / 10至10,000μS（5至5,000 ppm）
10.0 cm-1 / 100至200,000μS（50至100,000 ppm）
20.0 cm-1 / 200至400,000μS（100至200,000 ppm）
兼容的儀器：Signet儀器類型：8850、8860 8900、9900或帶有2850傳感器電子設備的9950
線程樣式是可逆線程或固定線程

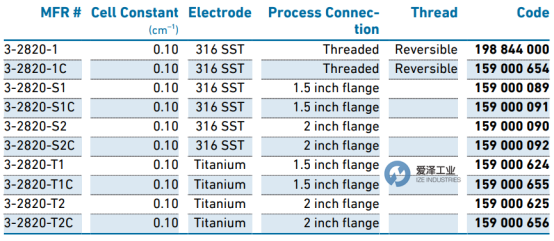

GF SIGNET電導率電極2820系列選型
GF SIGNET電導率電極2820系列其他常用型號：
GF SIGNET 3-2820-1
GF SIGNET 3-2820-1C
GF SIGNET 3-2820-S1
GF SIGNET 3-2820-S1C
GF SIGNET 3-2820-S2
GF SIGNET 3-2820-S2C
GF SIGNET 3-2820-T1
GF SIGNET 3-2820-T1C
GF SIGNET 3-2820-T2
GF SIGNET 3-2820-T2C
