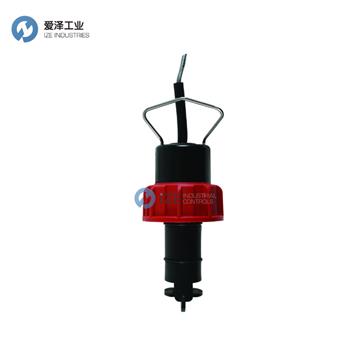

GF SIGNET流量傳感器P51530-P1技術參數
Technical Details | |
MFR # | P51530-P1 |
Body | PP |
Pin | Titanium |
Pipe Size(inch) | 5.0 ‐ 8.0 |
Sensor Type | -X1 |
Code | 198 801 621 |
GF SIGNET流量傳感器515系列介紹
Simple to install with time honored reliable performance, Model 515 Rotor-X paddlewheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The output signal of the Model 515 is a sinusoidal frequency capable of driving a self-powered flowmeter (Model 5090). The wide dynamic flow range of 0.3 to 6 m/s (1 to 20 ft/s) allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.
The Model 515 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices include PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions. Sensors can be installed in up to DN900 (36 in.) pipes using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap and intrinsically safe installation requirements.
515型Rotor-X槳輪流量傳感器易于安裝，并具有出色的可靠性能，是一款高度可重復使用的堅固型傳感器，具有極高的價值，幾乎無需維護。 515型的輸出信號是能夠驅動自供電流量計（5090型）的正弦頻率。 0.3至6 m / s（1至20 ft / s）的寬動態流量范圍使該傳感器能夠測量滿管的液體流速，并且可以在低壓系統中使用。
515型傳感器以多種材料提供，適用于各種管道尺寸和插入配置。多種材料選擇包括PP和PVDF，使得該模型具有高度的通用性，并且在化學上兼容許多液體工藝解決方案。使用Signet全面的定制配件系列，可以將傳感器安裝在最多DN900（36英寸）的管道中。這些定制的接頭（包括三通，鞍座和小孔）將傳感器設置為適當?shù)牟迦牍に嚵鞒痰纳疃?。傳感器還提供了滿足輕敲和本質安全安裝要求的配置。

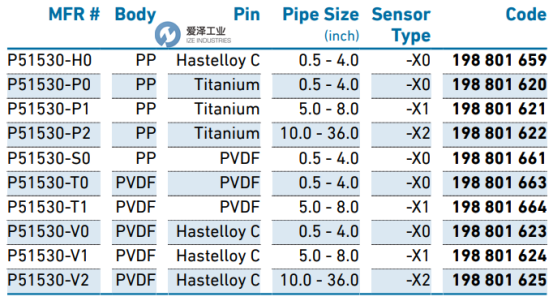

GF SIGNET流量傳感器515系列選型
GF SIGNET流量傳感器515系列其他常用型號：
GF SIGNET P51530-H0
GF SIGNET P51530-P0
GF SIGNET P51530-P1
GF SIGNET P51530-P2
GF SIGNET P51530-S0
GF SIGNET P51530-T0
GF SIGNET P51530-T1
GF SIGNET P51530-V0
GF SIGNET P51530-V1
GF SIGNET P51530-V2
GF SIGNET SENSER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF SIGNET流量傳感器P51530-P1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GF SIGNET products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
GF SIGNET流量傳感器515系列P51530-P1介紹及選型
