THERMOKON溫度傳感器AGS55+技術參數
Measured values | temperature |
Output voltage | TRV: 1x 0..10 V or 0..5 V |
Output current | TRA: 1x 4..20 mA |
Output passive | PT100 | PT100 1/3 DIN | PT1000 | PT1000 1/3 DIN | Ni1000 | Ni1000TK5000, NTC10k | NTC 10k Precon | NTC5k | NTC20k | NTC1,8k, LM235Z, KTY81-110 | KTY81-121 | KTY81-122 | KTY81-210 |
Power supply | 15..24 V = (±10%) or 24 V ~ (±10%) SELV, TRA: 15..24 V = (±10%) SELV |
Power consumption | TRV: typ. 0,4 W (24 V =) | 0,8 VA (24 V ~), TRA: max. 0,5 W (24 V =) |
Measuring range temp. | passive:, depending on used sensor |
Output signal range temp. | TRV | TRA:, Scaling analog output, -50..+50 °C (default setting), selectable from 8 temperature ranges -50..+50 | -20..+80 | -15..+35 | -10..+120 | 0..+50 | 0..+100 | 0..+160 | 0..+250 °C, adjustable at the transducer |
Operating temperature range | permissible working temperature, enclosure active: -35..+70 °C, enclosure passive: -35..+90 °C |
Accuracy temperature | passive: depending on used sensor, PT100 | PT1000: ±0,3 K (typ. at 0 °C, Kl.B), Ni1000: ±0,4 K (typ. at 0 °C), Ni1000TK5000: ±0,4 K (typ. at 0 °C), NTC10K: ±0,22 K (typ. at 25 °C), ±0,5 K (typ. at 21 °C within default measuring range) |
Sensor | passive: 2-wire (standard), 3-wire or 4-wire |
Enclosure | enclosure USE-S, PC, pure white |
Protection (IP) | IP65 according to EN 60529, SI-Protection (not possible for electronic Sensors) |
Cable entry | Flextherm M20 for wire ?=4,5..9 mm, removable |
Electrical connection | removable plug-in terminal, max. 2,5 mm2 |
stainless steel V2A, ?=6 mm, L=25 mm | |
Ambient condition | max. 85% rH short term condensation |
THERMOKON溫度傳感器AGS55+產品介紹
帶外部不銹鋼探頭（快速響應）的室外溫度傳感器，用于測量室外區域，冷藏室，溫室，生產工廠和倉庫的溫度。 根據型號的不同，可以通過Thermokon USEapp例如AGS55 +進行單獨配置。作為2點控制器。 鉸鏈式蓋板和免工具接線以及可移動的電纜入口確保安裝快速簡便。
應用
用于室外溫度測量的傳感器：冷藏室，溫室，生產工廠和倉庫。 不銹鋼外部探頭，響應更快。

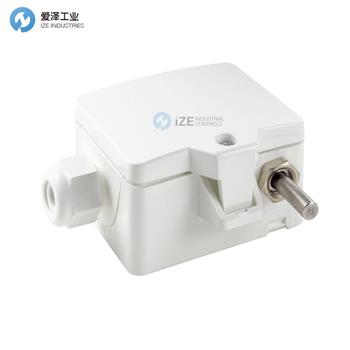

Outdoor temperature sensor with external stainless steel probe (fast response) for measuring temperature in outdoor areas, cold rooms, greenhouses, production plants and warehouses. Depending on the model, the AGS55+ can be individually configured via Thermokon USEapp e.g. as a 2-point controller. A hinged cover and tool-free wiring as well as removable cable entries ensure a quick and easy installation.
APPLICATION
Sensor for outdoor temperature measurement: cold rooms, greenhouses, production plants and warehouses. Stainless Steel external probe for faster response.
THERMOKON溫度傳感器其他常用型號：
THERMOKON AGS55+
THERMOKON AGS54+
THERMOKON AGS55 + UNI Modbus
