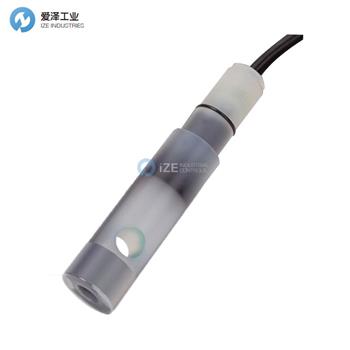

FOXBORO無極電導率電極EP307B系列技術參數
Specifications | |
Conductivity Range: | Minimum full scale 1000 microsiemens; maximum full scale 2000 millisiemens |
Temperature Range: | 0°–175°C (ranges from 350°F to 140°F at varying pressures linearly de-rated — material- specific) |
Pressure Limit: | 150 psi (material-specific, linear de-rating, see above) |
Process-Wetted Material: | Selectable all-thermoplastic sensor body and O-ring materials, including thermoplastics — PFA, PCTFE, PEEK, etc.; and O-ring — Chemraz, Viton, Kalrez,or EPDM (EPDM = 300°F max.) |
Cable: | 20 foot integral (std.) of either Teflon or PVC (longer lengths optional) |
Temperature Compensation Element: | Selectable as either 100Ω or 1000Ω RTD, or 100 K thermistor |
Cell Factor: | 2.49 cm-1 |
Analyzer/Transmitter Compatibility: | Function with the 876EC intelligent transmitter, 875EC intelligent analyzer, or 873EC analyzer |
FOXBORO無極電導率電極EP307B系列介紹
EP307B系列熱塑性傳感器旨在為許多最具腐蝕性的無電極電導率應用提供完全非金屬的傳感器材料。這種類型的常見應用包括過程中對金屬純度或靈敏度高的關注，例如，高純度硫酸，氫氟酸和其他侵蝕性解決方案，其中標準傳感器材料根本無法生存。
從潤濕材料（例如外殼和O形圈）列表中進行選擇的能力使EP307B系列傳感器可以針對當前的特定應用進行定制。多種傳感器材料可確保過程兼容性，而無需使用金屬潤濕部件。熱塑性傳感器主體包括PFA，PCTFE，玻璃填充的PEEK等; O型圈的選擇包括Chemraz，Kalrez，Viton和EPDM。
可選的襯套和法蘭安裝設備可作為所列的許多傳感器材料的特價產品。
The EP307B Series thermoplastic sensors are designed to provide a completely nonmetallic sensor material for many of the most aggressive electrodeless conductivity applications. Commonly encountered applications of this type include those where high purity or sensitivity to metals in the process is a concern — for example,high-purity sulfuric acid, hydrofluoric acid, and other aggressive solutions where standard sensor materials simply will not survive.
The ability to select from a list of wetted materials (e.g., housing and O-ring) permits the EP307B Series sensors to be tailored to the specific application at hand. A variety of sensor materials ensures process compatibility with no metallic wetted parts. Thermoplastic sensor bodies include PFA, PCTFE, glass-filled PEEK and others.O-ring choices include Chemraz, Kalrez, Viton and EPDM.
Optional bushing and flange mounting equipment is available as specials in many of the sensor materials listed.

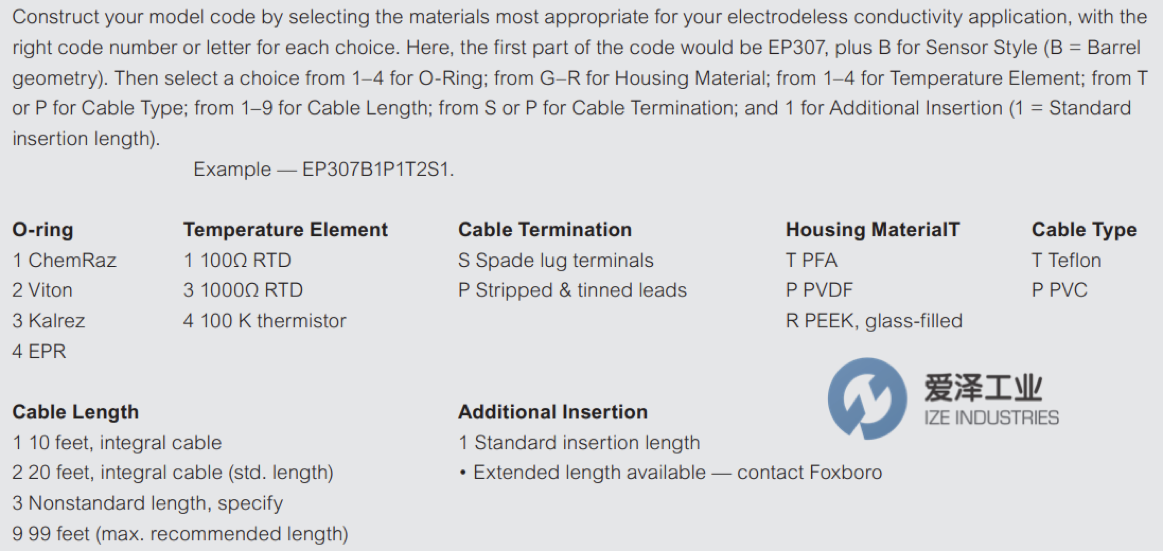

FOXBORO無極電導率電極EP307B系列選型
FOXBORO無極電導率電極EP307B系列其他常用型號：
FOXBORO EP307B-2-P1P2P1
FOXBORO EP307B1P1T2S1
FOXBORO EP307G
FOXBORO 871EC
FOXBORO 871FT
FOXBORO EP402
FOXBORO Electrodeless Conductivity NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO無極電導率電極EP307B-2-P1P2P1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FOXBORO無極電導率電極EP307B系列EP307B-2-P1P2P1介紹及選型
