BINMASTER液位指示器MR系列技術參數
Specifications | |
Input Voltage: | 115/230 VAC, 50/60 Hz |
Power Consumption: | 1.5 Watts |
Switch: | SPDT |
Contact Rating: | 5A @ 250 VAC |
Rotary Speed: | 1 RPM |
Operating Temp: | —40°F to +185°F (-40°C to +85°C) |
Wiring Cable: | 18 AWG, 12 inch cable |
Mounting: | 3/4” PF (pipe fitting) |
Clutch: | Magnetic slip clutch prevents damage to motor gears |
Enclosure: | Polycarbonate, NEMA 1 |
Weight: | 0.77 lb. |
BINMASTER液位指示器MR系列介紹
微型旋轉裝置提醒用戶注意裝有塑料，食品，種子，化學藥品以及其他粉末和散裝固體物料的較小料斗和料斗中的物料水平。它的小尺寸和堅固的設計允許在其他類型的設備根本不適合的情況下使用水平傳感器。它的操作原理很簡單：當沒有物料時，慢速電動機使槳葉旋轉。當物料與槳板接觸時，槳板停止運轉，并發出警報（例如燈光或喇叭聲）通知操作員料倉已滿。清空垃圾箱后，槳將再次開始旋轉。微型旋轉器易于安裝在垃圾箱的側面或頂部，適用于各種輕到重的物料。槳板選項可供選擇，使其可調節以適應各種材料密度。

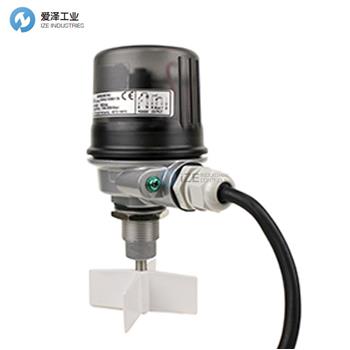

The mini-rotary alerts users to material levels in smaller bins and hoppers that contain plastics, food, seed, chemicals, and other powder and bulk solid materials. Its small size and rugged design allows for use of a level sensor where other types of equipment simply will not fit. Its principle of operation is simple: a slow speed motor rotates the paddle when no material is present. When material comes into contact with the paddle, the paddle stops and an alert—such as a light or horn–notifies the operator the bin is full. When the bin is emptied, the paddle begins rotating again. The mini-rotary is simple to install on the side or top of a bin and is appropriate for a variety of light to heavy materials. Paddle options are available, making it adjustable for a wide range of material densities.
BINMASTER液位指示器MR系列其他常用型號：
BINMASTER MR-G-110
BINMASTER MR-G-220
BINMASTER MR-G-24
BINMASTER MR-H-110
BINMASTER MR-H-220
BINMASTER MR-I-110
BINMASTER MR-I-220
