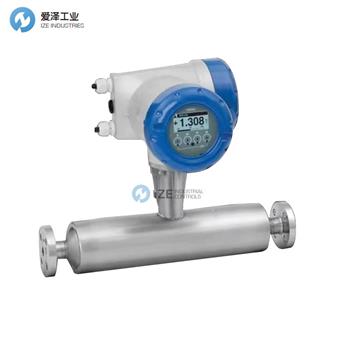

KROHNE流量計OPTIMASS 1400系列技術參數
Measuring system | |
Measuring principle | Coriolis mass flow |
Application range | Mass flow and density measurement of fluids, gases and solids |
Measured values | Mass, density, temperature |
Calculated values | Volume, referred density, concentration, velocity |
Design | |
Basic | System consists of a measuring sensor and a converter to process the output signal |
Features | Fully welded maintenance free sensor with twin straight measuring tubes |
Variants | |
Compact version | Integral converter |
Remote version | Available with field version of the converter |
Modbus version | Sensor with integral electronics providing Modbus output for connection to a PLC |
Measuring accuracy | |
Mass | |
Liquid | ±0.15% of actual measured flow rate + zero stability |
Gas | ±0.35% of actual measured flow rate + zero stability |
Repeatability | Better than 0.05% plus zero stability (includes the combined effects of repeatability, linearity and hysteresis) |
Zero stability | ±0.01% of maximum flow rate with respective sensor size |
Reference conditions | |
Product | Water |
Temperature | 20°C / 68°F |
Operating pressure | 1 barg / 14.5 psig |
Effect on sensor zero point caused by a shift in process temperature | |
Stainless Steel | 0.001% per 1°C / 0.00055% per 1°F |
Effect on sensor zero point caused by a shift in process pressure | |
Stainless Steel | 0.00012% of the max flow rate per 1 barrel. / 0.0000083% of the max flow rate per 1 psig |
Density | |
Measuring range | 400...2500 kg/m3 / 25...155 lbs/ft3 |
Accuracy | ±2 kg/m3 / ±0.13 lbs/ft3 (S15: ±5 kg/m3 / ±0.33 lbs/ft3) |
On site calibration | ±0.5 kg/m3 / ±0.033 lbs/ft3 |
Temperature | |
Accuracy | ±1°C / 1.8°F |
KROHNE流量計OPTIMASS 1400系列產品介紹
OPTIMASS 1400是一款經濟高效的雙直管科式質量流量計，適用于各種標準的氣體和液體應用（最高170,000 kg / h或6,235 lb / min）。該儀表具有用于液體應用的夾帶氣體管理（EGMTM），因此即使夾帶氣體高達100％也能保持運行。
OPTIMASS 1400具有優化的分流器，可將壓力損失降至最低，并且可以輕松排干和清潔。除了法蘭過程連接之外，它還支持食品和飲料應用的各種標準衛生連接。與所有其他科隆科里奧利質量流量計一樣，由于OPTIMASS 1400不受串?dāng)_/線路振動的影響，因此可以串聯或并聯安裝，因此沒有安裝限制。它也被批準用于危險區域?？剖劫|(zhì)量流量計提供增強的診斷功能（NE 107），并帶有各種數字通訊選項。通過OPTICHECK Flow Mobile應用程序，可以通過安全的Bluetooth連接在現場管理所有設備設置。通過這種方式，可以完成各種調試任務，例如零校準或診斷配置可通過無線方式完成。
The OPTIMASS 1400 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of standard applications with gases and liquids (up to 170,000 kg/h or 6,235 lb/min). The meter features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 1400 features an optimised flow splitter for minimum pressure loss and can be drained and cleaned easily. Next to flange process connections it supports a wide range of standard hygienic connections for food and beverage applications. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 1400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. It is also approved for use in hazardous areas. The Coriolis mass flowmeter provides enhanced diagnostics (NE 107) and comes with various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
KROHNE流量計OPTIMASS 1400系列其他常用型號：
KROHNE OPTIMASS 1400
KROHNE OPTIMASS 1400C
KROHNE OPTIMASS 6400
KROHNE OPTIMASS 2400
KROHNE OPTIMASS 7400
KROHNE OPTIMASS 3400
KROHNE OPTIMASS 7010
KROHNE OPTIMASS 3010
KROHNE OPTIMASS 1010
KROHNE OPTIMASS 4011
KROHNE OPTIMASS 4010
