NEXON壓力傳感器PN3000系列技術參數
Specification | |
Supply voltage | 12…30Vdc |
No-load current consumption | Maximum30mA, 24Vdcpowered by |
Switch output | |
Output type | Push-pull (compatible withPNPandNPN), normally open and normally closed can be set |
S1,S2Output current | <500mA |
Response time | <10ms |
Voltage drop | <1V |
Switching Accuracy | ≤±0.25%Range |
Current mode analog output | |
Output type | Third line 0…20mA/4…20mACan be set |
LoadRA | RA≤0.5KΩ |
Voltage type analog output | |
Output type | Third line 0…5V/1…5VCan be set |
LoadRA | RA>10KΩ |
Wiring protection | Reverse phase, overload, short circuit protection |
Show | |
Design | Red4 bit 8mm high brightnessled |
Display range | -1999…9999 |
Accuracy | ≤±0.25%fs |
Stability (annual drift) | ≤±0.3%Range |
Temperature | |
Medium temperature | -40…+85℃ |
Ambient temperature | -20…+85℃ |
Material | |
Head case | Stainless steel304,PC |
Case | Stainless steel304 |
Media contact part | Stainless steel316 |
Degree of protection | IP67 |
Outgoing way | M12×1Connector |
Process connection | G1/4external threadEDseal |
NEXON壓力傳感器PN3000系列介紹

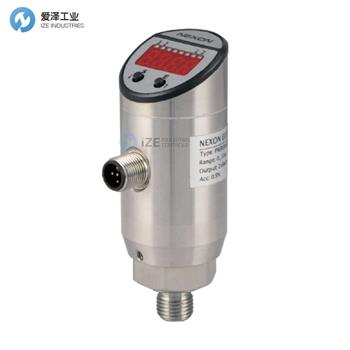

PN3000 配備陶瓷厚膜傳感元件，輸出并顯示標準電信號。全金屬外殼，330° 可旋轉高亮 LED 顯示屏，雙按鍵和友好的菜單設計，多種工藝連接。
? 高壓額定值
? 測量范圍從 0...1barG 到 0...800barG
? 全金屬外殼，帶數字顯示的 4 位 LED
? PNP/NPN 可編程
? 4...20mA/0...20mA/1...5V/0...5V 輸出可編程
? 可旋轉指示器
PN3000 equips with a ceramic thick film sensing element while a standard electrical signal is output and display. All-metal housing, 330° rotatable highlight LED display, dual keys and friendly menu design, multiple process connections.
? High pressure rating
? Measuring range from 0...1barG to 0...800barG
? All-metal housing, 4-digit LEDs with digital display
? PNP/NPN programmable
? 4...20mA/0...20mA/1...5V/0...5V output programmable
? Rotatable indicator
NEXON壓力傳感器PN3000系列其他常用型號：
NEXON PN3000/8005P21G14MS
NEXON PN3000/B001P21G14MS
NEXON PN3000/B004P21G14MS
NEXON PN3000/B006P21G14MS
NEXON PN3000/B010P21G14MS
NEXON PN3000/B016P21G14MS
NEXON PN3000/B025P21G14MS
NEXON PN3000/B040P21G14MS
NEXON PN3000/B060P21G14MS
NEXON PN3000/B100P21G14MS
NEXON PN3000/B160P21G14MS
NEXON PN3000/B250P21G14MS
NEXON PN3000/B400P21G14MS
NEXON PN3000/B600P21G14MS
NEXON PN3000/B800P21G14MS
NEXON PN3000/B100P20G14MS
NEXON SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
