MONARCH角度傳感器SPSR-115/230描述
Specifications | |
Range (RPM): | Same as sensor |
Pulse Width: | TTL 0‐5V or 5‐0V (user selectable polarity) |
Pulse Width: | Determined by size of target and rotational speed |
Output Connector: | BNC connector |
Power: | Rechargeable NiMH batteries, 40 hours or continuous with 115/230 |
MONARCH角度傳感器SPSR系列產品介紹
DESCRIPTION
The unique SPSR (Self Powered Sensor) with internal rechargeable batteries provides the required power to any one of (4) Monarch Sensors (see below). The TTL compatible output is switch selectable as either positive going 0-5V pulses or negative going 5-0V pulses provided on a BNC connector. The internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSR can be powered by 115/230Vac. Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers and magnetic tape recorders.
描述
帶有內置可充電電池的獨特SPSR(自供電傳感器)為(4)個Monarch傳感器中的任何一個提供所需的電源(請參見下文)。 TTL兼容輸出可通過BNC連接器上的0-5V正脈沖或5-0V負脈沖進行開關選擇。內部充電電池在兩次充電之間可提供40個小時的運行時間。對于連續運行,SPSR可以由115 / 230Vac供電。自供電傳感器是為振動分析儀,頻譜分析儀,頻閃儀,數據采集設備,轉速表,平衡器,波形分析儀和磁帶記錄儀提供每轉一個脈沖的關鍵元件。
MONARCH角度傳感器SPSR系列其他型號列舉:
MONARCH SPSR-115/230
MONARCH SPSR-IM
MONARCH CSLS
MONARCH SLS115/230
MONARCH Angle sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MONARCH角度傳感器SPSR-115/230的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for MONARCH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

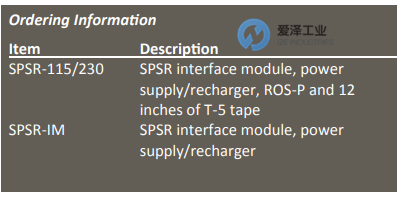

MONARCH角度傳感器SPSR-115/230選型及介紹
