MicroE編碼器MercuryII 1900系列技術參數
Sensor Size | 13.49mm×32.00mm×8.73mm |
Power Supply: | 5VDC ±5% @ 48mA when used with recommended termination (see installation manual) |
Temperature Operating: | 0 to 70°C |
Storage: | Storage: -20 to 85°C |
Humidity: | 10 to 90% RH non-condensing |
EMI: | CE Compliant |
Shock: | 300G 0.5 ms half sine |
Vibration: | 30G at 17Hz |
Sensor Weight: | 6g (Sensor without cable) |
Sensor Cable: | Double Shield |
MicroE編碼器MercuryII1900系列介紹
MII 1900是建立在經過現場驗證的Mercury技術平臺上的。Mercury II以更小、更智能、更快而聞名，它建立在最初的水星系列基礎上，增加了性能、多功能性、堅固性和易用性。
? 小型，低質量的傳感器與超低的z高度適合于緊湊的運動系統
? 低噪聲，高精度輸出信號-分辨率可達1.2nm；遠程精度可達±1μm(線性玻璃尺度可達130mm長)
? 高速運行-7.2m/s
? 多功能-一個傳感器工作與激光膠帶或線性玻璃秤
? 廣泛的傳感器對準公差和對準工具的紅/黃/綠設置LED使傳感器快速對準
The Mercury II? 1900 is built on the field-proven Mercury? technology platform. Known for being smaller, smarter and faster, Mercury II builds on the original Mercury series and adds increased performance, versatility, robustness, and ease-of-use.
? Small, low-mass sensor with ultra low Z-height fits in compact motion systems
? Low noise, high accuracy output signals - resolution up to 1.2nm;long-range accuracy up to ± 1μm (linear glass scales up to 130mm long)
? High-speed operation - 7.2m/s
? Versatility - one sensor works with laser tape or linear glass scales
? Broad sensor alignment tolerances and the Alignment Tool’s red/yellow/green setup LEDs make sensor alignment fast

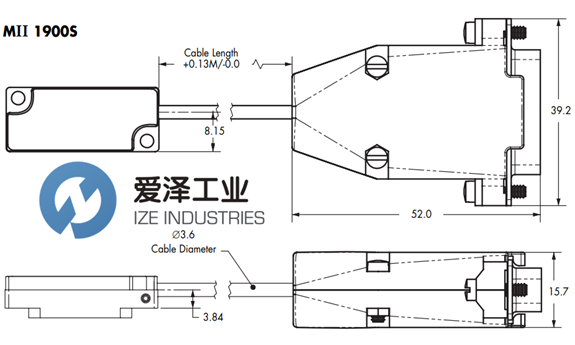

MicroE編碼器MercuryII1900S技術尺寸
MicroE編碼器MII 1900S/系列其他常用型號：
MICROE MII1910S
MICROE MII1930S
MICROE MII1950S
MICROE MII1900S
