TRI-MATIC調節器239系列技術參數
Technical data | |
Max. inlet pressure | 15 bar |
Outlet pressure | see table |
Tolerance | 1.0 bar - 3.0 bar: +/- 0.3 bar |
Connection | 1/4" BSP / 1/4" NPT female-female |
Temperature range | 4°C to 60°C |
Body | Grivory? GV-5 FWA |
Inner parts | DIN 1.4404 / AISI 316L |
Spring(Non-wetted part) | DIN 1.4310 / AISI 301 |
Diaphragm | EPDM |
Weight | ca. 40 gram |
TRI-MATIC調節器介紹
EcoReg流體調節器是一個獨立的隔膜壓力調節器，可以安裝在所有流體系統中。它確保了恒定而精確的輸出壓力，而與輸入壓力無關。壓力值已在出廠時預設，無法更改，確保沒有人可以操縱指定的壓力值。
通常，水或流體管線的壓力過高，會波動并隨建筑物的高度而變化。嵌入式EcoReg?流體調節器通過確保正確的工作壓力來保護所有下游安裝，設備和組件。 這對于液體定量給料機械特別重要，可防止昂貴的生產損失。此外，將EcoReg流體調節器與灑水噴頭相結合，可形成使用噴水或水霧進行冷卻或清潔的最佳方法。
The EcoReg fluid regulator is an independent diaphragm pressure regulator that can be installed in all fluid systems. It ensures a constant and precise output pressure independent from the input pressure. The pressure value has been factory preset and cannot be changed, ensuring that no one can manipulate the specified pressure value.
Typically, the pressure of a water or fluid line is too high, it fluctuates, and varies with the height of a building. The in-line EcoReg? fluid regulator protects all downstream installations, devices and components by ensuring the correct operating pressure. This is particularly important for liquid dosing machinery, preventing expensive loss of production. In addition, combining the EcoReg fluid regulator with a sprinkler nozzle creates the best means of cooling or cleaning using a water spray or mist.

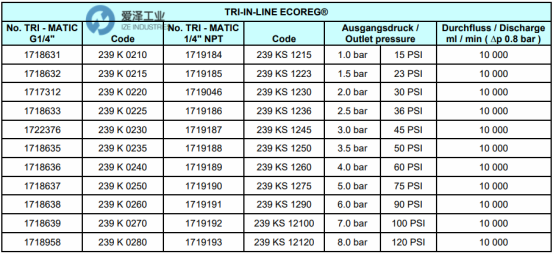

選型參數
TRI-MATIC調節器239系列其他常用型號：
TRI-MATIC 239K0210
TRI-MATIC 239K0215
TRI-MATIC 239K0220
TRI-MATIC 239K0225
TRI-MATIC 239K0230
TRI-MATIC 239K0235
TRI-MATIC 239K0240
TRI-MATIC 239K0250
TRI-MATIC 239K0260
TRI-MATIC 239K0270
TRI-MATIC 239K0280
TRI-MATIC Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRI-MATIC調節器239K0230的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRI-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TRI-MATIC調節器239系列239K0230選型及介紹
