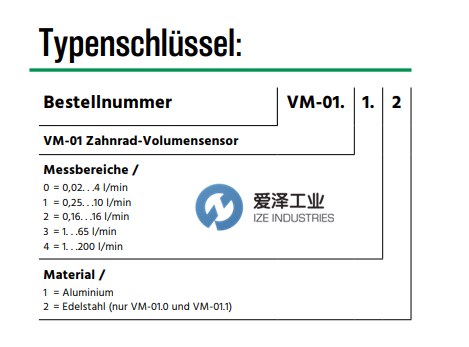

PROFIMESS流量計VM-01系列型號解析
VM-01:VM-01 Gear volume sensor |
2:0,16. . .16 l/min |
1:Aluminum |
PROFIMESS流量計VM-01系列介紹及選型
Description:

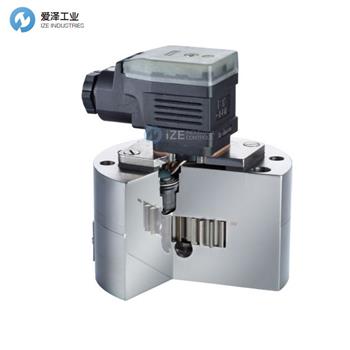

The VM-01 series of the flowmeter measuring sensor consists of a par of toothed wheels which is driven by the flow of fluid according to the working principle of a gear-wheel pump. The bearing for the measuring sensor is designed as a radial and axial sliding contact bearing (VM-01.2: ball bearing). The gear-wheel movement is scanned by means of a magneto-resistive sensor that is hermetically separated from the measuring chamber. The gear-wheel diameter of the VM-01 is ideal due to its low resistance to flow and especially low sound level.
Application:
The gear-wheel flowmeters of the VM-01 series are mainly used for measuring consumption, control of filling operations and for monitoring lubrication points. Due to their small dimensions and, particularly, due to the low pricing, they are suitable for OEM applications.
描述：
流量計測量傳感器的VM-01系列由一對齒輪組成，這些齒輪根據齒輪泵的工作原理由流體的流動驅動。 測量傳感器的軸承設計為徑向和軸向滑動接觸軸承（VM-01.2：球軸承）。 齒輪的運動通過一個磁阻傳感器進行掃描，該磁阻傳感器與測量室氣密隔離。 VM-01的齒輪直徑是理想的選擇，因為它的低流動阻力和特別低的聲音水平。
應用：
VM-01系列的齒輪流量計主要用于測量消耗量，控制加注操作和監視潤滑點。 由于它們的尺寸小，尤其是由于價格低廉，它們適合OEM應用。

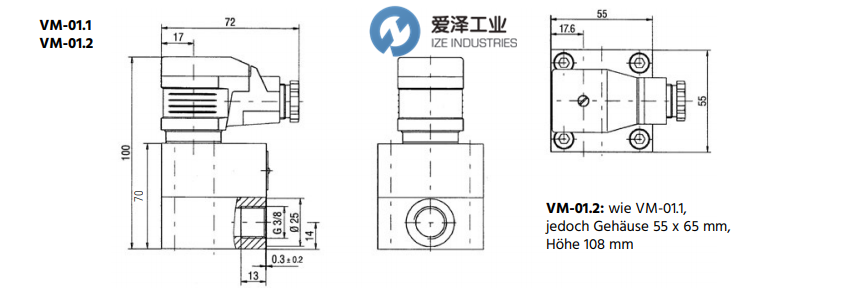

PROFIMESS流量計VM-01系列尺寸圖
PROFIMESS流量計VM-01系列其他型號列舉
PROFIMESS VM-01.0.1
PROFIMESS VM-01.0.2
PROFIMESS VM-01.4.1
PROFIMESS VM-01.1
PROFIMESS VM-01.2
PROFIMESS VM-01.3
PROFIMESS VM-01.4
PROFIMESS VM-01.0
PROFIMESS switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROFIMESS流量計VM-01.4.1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for PROFIMESS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our webCEte: jjxdch.cn.
PROFIMESS流量計VM-01.4.1電氣及機械參數
